Any PAL Vegas Users? at DVinfo.net

Alastair Brown · February 18th, 2007, 01:20 PM

Apologies in advance as this is a double post in the Vegas section as well. Figured it was of interest in both which is why I did it.

Got my PAL XH-A1. Did some test shots in 50i and 25f with a view to comparing.

The only option in preferences within Vegas is HD 1080-50i(1920x1080, 25fps)

So...wihin Vegas, 25f doesn't seem to be an option?

Anybody know any different or a workaround?

Piotr Wozniacki · February 18th, 2007, 01:43 PM

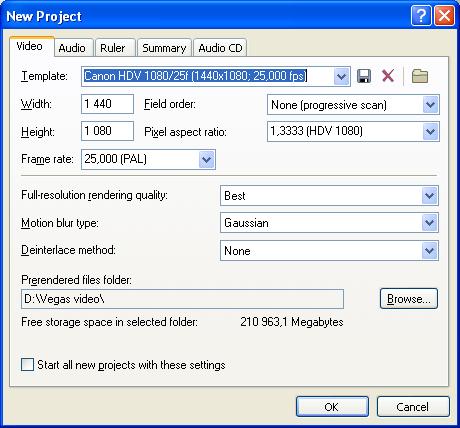

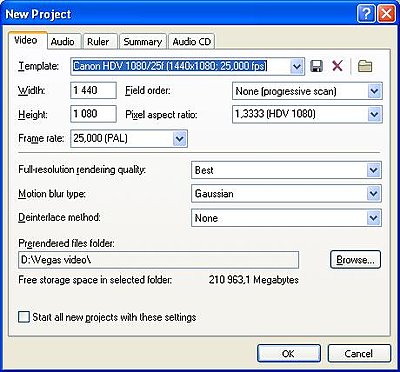

Alastair, I have simply created and saved my own template as attached.

Alastair Brown · February 18th, 2007, 02:51 PM

Hi Poitr, dzein dobri!

Thanks for the quick reply. Youve answered my question but raised a few more.

I thought the templates that were shown were all that was available?

Can you literally tell Vegas to handle whatever you throw at it?

Your template shows 1440x1080 whereas I was under the assumption that I was shooting1920 (have I just shown a huge degree of ignorance!!!!!)

Piotr Wozniacki · February 18th, 2007, 03:04 PM

Alastair,

You can stat with any template, set your own values in the fields and choose whatever you want from the drop-down lists, and then save it a s your own template under a name of your choice.

As to the width, yes - 1440 is the HDV standard, just like the Pixel aspect ratio of 1,3333 (which will give you the 1920 to watch).

Cheers!

Alastair Brown · February 18th, 2007, 03:19 PM

Thanks Poitr,

I'm still on the learning curve and you have helped steer me through one obstacle.

So.....when and for what would you use the 1920 x 1080 template?

Alastair Brown · February 19th, 2007, 12:51 AM

I'll post this here as well, as it's the natural next question.

OK, now I have my project properties correct, and, assuming I was wanting to print a HDV master back to tape, what render settings would I choose for 50i and 25f?

I tried rendering as MPEG 2 DVD Architect PAL and the 25f looked fine. The 50i didn't look right at all. Seemed to have horizontal striping across the image.

Thanks in advance!

Piotr Wozniacki · February 21st, 2007, 05:15 AM

Alastair, sorry I lost your questions because the thread has been moved.
The horizontal "striping" you see is probable interlace artifacts; if you deliver to a DVD to be played in a progressive DVD player (or feeding a progressive TV, or both) - this is not a problem as it'll get deinterlaced. If you mainly intent to watch your movies on a PC, you better use the F format!
