Sam Renkin · July 30th, 2010, 01:53 PM

There is a very cool plug in for FCP call PHYX Keyer. I've just seen a poorly lit green screen interview rescued by PHYX by taking precise control of the green-grey color and replacing it with a proper green. Is there anything like this for Vegas?

Seth Bloombaum · July 30th, 2010, 07:02 PM

It is a little harder to get a good chromakey out of vegas - other keying software has the specific functions in an easy-to-understand interface. With Vegas, you end up with quite a chain of filters if the original shot wasn't perfect.

The particular function of green replacement before cutting the key can be done with the secondary color corrector and perhaps chromablur. Keith Kolbo has a couple tutorials out there, if you search for them.

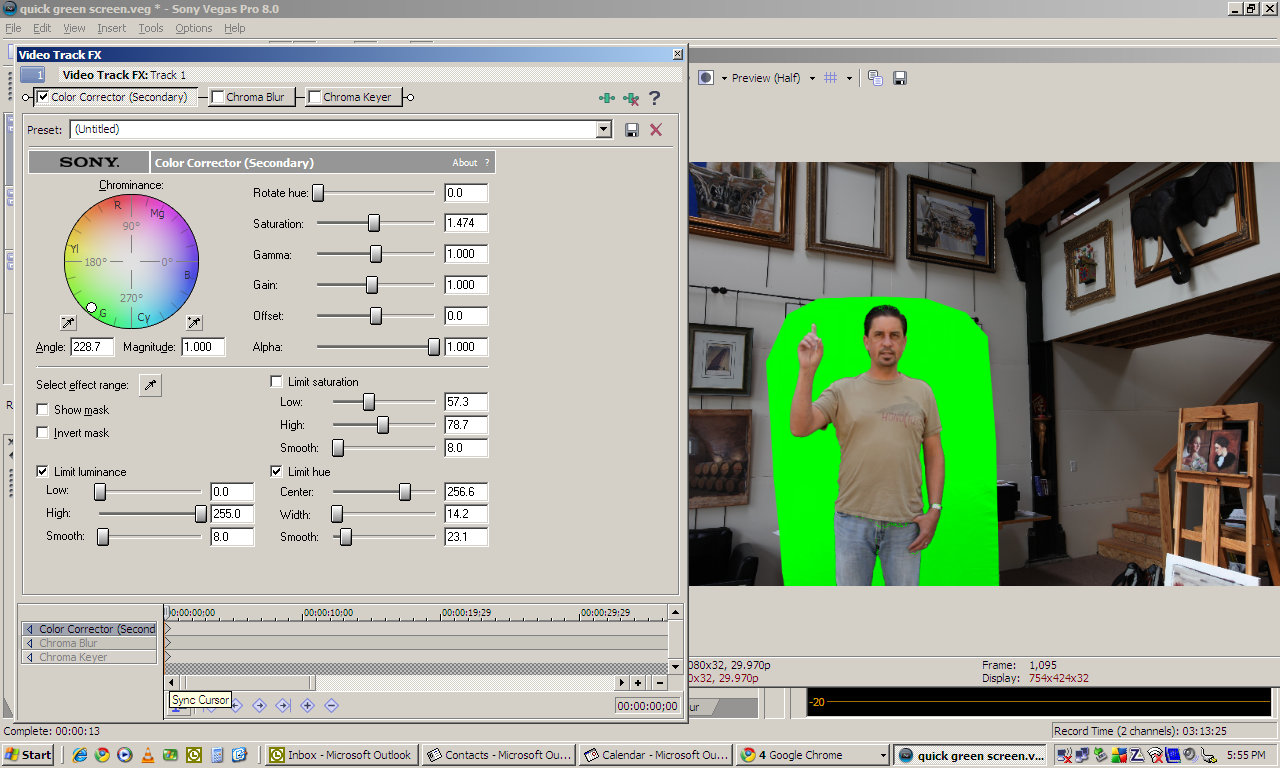

Attached is an example. The first step is to "select effect range", then "show the mask" and tweak it, using the bottom set of controls, then un-"show the mask", select a color with the wheel that you want to be the new replacement, and bring up the saturation.

July 30th, 2010, 01:53 PM	#1
Sam Renkin Major Player Join Date: May 2008 Location: Atlanta GA Posts: 211	Key plug in for Vegas? There is a very cool plug in for FCP call PHYX Keyer. I've just seen a poorly lit green screen interview rescued by PHYX by taking precise control of the green-grey color and replacing it with a proper green. Is there anything like this for Vegas?

July 30th, 2010, 07:02 PM	#2
Seth Bloombaum Inner Circle Join Date: Sep 2003 Location: Portland, Oregon Posts: 3,420	It is a little harder to get a good chromakey out of vegas - other keying software has the specific functions in an easy-to-understand interface. With Vegas, you end up with quite a chain of filters if the original shot wasn't perfect. The particular function of green replacement before cutting the key can be done with the secondary color corrector and perhaps chromablur. Keith Kolbo has a couple tutorials out there, if you search for them. Attached is an example. The first step is to "select effect range", then "show the mask" and tweak it, using the bottom set of controls, then un-"show the mask", select a color with the wheel that you want to be the new replacement, and bring up the saturation. Attached Thumbnails __________________ 30 years of pro media production. Vegas user since 1.0. Webcaster since 1997. Freelancer since 2000. College instructor since 2001.
