Scott Tebeau · July 23rd, 2006, 12:25 PM

Just ordered the Marshall R-70 monitor with the v-dv-pwr1 battery adapter to use with the HD 100. I’ve read a handful of recommendations for the Noga 1105 mounting arm, but I'm still confused on best and safest way to mount it to the camera.

Is the hot shoe not strong enough to support the monitor, adapter and batteries? Is this best?

Is there an alternative that allows you to mount elsewhere on the camera?

Paul Moss · July 23rd, 2006, 04:27 PM

my reccomendation would be to try the mounting systems from Zacuto.
they give you lots of options for mounitng monitors hard disks etc
the only only thing is its another $500+.......
http://www.zacuto.com/
Paul

Scott Tebeau · July 23rd, 2006, 04:44 PM

Thanks for the recommendation Paul. Looks like a useful addition for mounting a firestore, wireless, etc.

From what I can see it places the monitor into a strange position behind the camera and could be a problem for framing and limiting for a focus puller. I would prefer to keep the monitor attached to the center of the camera.

What is everyone else doing to mount their monitors?

S. Abdul Jamal · July 23rd, 2006, 08:58 PM

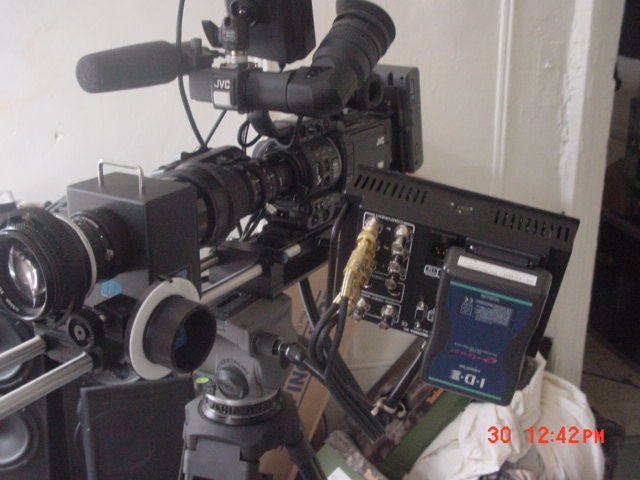

i got mine mounted to the tripod , check it out .

Lawrence Hyland · August 5th, 2006, 03:18 PM

Jamal - Where did you find the arm/bracket to mount the monitor to your tripod? I really like that set-up.

Thanks,

Law

Patricia Lamm · August 5th, 2006, 03:58 PM

I've tried every possible configuration of the Marshall with my Canon XLH1 and have the B&H Photo return shipping costs (for clamps, arms, etc.) to show for it. But the one that I"m now actually delighted to have found involves clamping the monitor to the handle of the Canon. Extremely stable and rock-solid, the clamp attachment arm allows movement in every direction (all positions can then be locked in place), and I can quickly take the camera + monitor off the tripod in one movement. Pics can be found at:

http://jupiter.math.msu.edu/~lamm/Canon

The relevant parts are all by Manfrotto and total $67:

http://www.bhphotovideo.com/bnh/cont...ughType=search
http://www.bhphotovideo.com/bnh/cont...lue=313039_REG

BTW I tried a similar arrangement mounting the monitor to my tripod, but I wasn't happy with the results... with my particular tripod anyway. I tried this with 3 or 4 different arms & clamps. And I don't recommend attaching the monitor to the shoe -- you'll be nervous the entire time it's up there. Too easily dislodged, if you ask me.

Lawrence Hyland · August 7th, 2006, 12:58 AM

Patricia - That is the most robust monitor mount I've seen, I like it.

Do you use it outdoors?

Which controls do you use for zoom and recording?

Thanks,

Law

Patricia Lamm · August 7th, 2006, 06:54 AM

Quote:

Originally Posted by Lawrence Hyland

Patricia - That is the most robust monitor mount I've seen, I like it.

Thanks, I can't recommend it highly enough. Last night I added an accessory to the hotshoe and it was very easy to loosen the tension on the Manfrotto arm so that I could reposition the monitor a few inches out of the way of the accessory.

I haven't used it outdoors yet.

All record buttons are still available -- if I want to use the button on the handle I just have to reach around or over the monitor. For zoom I either use the zoom ring on the lens itself (which is what I generally have been using when the camera is on sticks) or more frequently I use a lanc zoom controller that I have (which also has a record button).

Even though I never use them, I was surprised to find that I can still access the VCR controls on the handle since there's enough room under the clamp for the door to those controls to open. It's not easy to see which button is which -- I guess that would take some practice. But again, I don't use the VCR when filming anyway.

Chris Jothi · August 11th, 2006, 11:53 AM

Hi,

I bought one of those Noga arms so I could connect my Marshall to my tripod but the arm's screw thread is not that same as the screw hole on my tripod head (a cheap 501 head).

Do better tripod heads have the 1/4-20 screw threading as standard?

Thanks

Chris

S. Abdul Jamal · August 11th, 2006, 01:16 PM

Quote:

Originally Posted by Lawrence Hyland

Jamal - Where did you find the arm/bracket to mount the monitor to your tripod? I really like that set-up.

Thanks,

Law

sorry for the late post but i got it from zgc (jason)

Keith Gruchala · August 17th, 2006, 03:04 PM

Here is a link to a bogen product:
http://www.evsonline.com/merchant2/m...egory_Code=4B2
This quick release has two side mounted threads- one 1/4" and one 3/8" which you can plug either the noga or Israeli arm into or by using ball head adapters from bogen or others and baby pin extensions (such as available at Film Tools in LA) you can make a pretty good set up that will also work hand held. This is an important advantage over the tripod mounts. What you do is mount this bogen quick release plate system onto what ever quick release comes with your tripod head, so it acts as a secondary plate/riser that you can just leave on, and when you want to go hand held it's as easy as just sliding it off as you would normally do. It's also kind of handy because you can offset the plate further to the rear on your head to account for very front heavy rigs such as the RedRock/ P+S
