Can someone tell me a height measurement from bottom of hot shoe adapter to the top of the monitor?

Thanks!

Kirk Candlish · April 13th, 2011, 12:20 AM

5 5/8" with the adapter straight up. Can't imagine you're run it that way though.

Kirk Candlish · April 13th, 2011, 12:27 AM

Quote:

Originally Posted by Dale McClelland

Does the Sony CLM-55V monitor have a tripod socket?

The shoe adapter screws into a 1/4 20 thread in the bottom of the monitor and the adapter itself also has a 1/4 20 thread in the bottom of it. So yes, you could mount it to a tripod.

Jeff Harper · April 13th, 2011, 04:35 AM

I should add that with the arm I mentioned you are able to position the monitor directly next to your camera.

Chris Rentzel · April 13th, 2011, 09:06 AM

Quote:

Originally Posted by Kirk Candlish

5 5/8" with the adapter straight up. Can't imagine you're run it that way though.

Yeah I only have 4-1/2" headroom once I mount my camera on my halorig (a fig rig wanna be) before it hits the underneath part of the rig.

When you say "Can't imagine you're run it that way though." what do you mean? I suppose I would be angling it back a few degrees? Maybe that would make the clearance.

Thanks, Chris

Dale McClelland · April 13th, 2011, 03:44 PM

Quote:

Originally Posted by Jeff Harper

I should add that with the arm I mentioned you are able to position the monitor directly next to your camera.

Thanks, Jeff (and also Kirk) for the info regarding the tripod socket on the Sony monitor. We have a small local photography shop here. When I get the monitor (it shipped today) I'll take my items there and see what they can do.

Also I saw this item in another forum:

A couple of crappy pics of mounted monitor: Sony SLR Talk Forum: Digital Photography Review (the author's title, not mine)

It's a Manfrotto 430 11" Long Plate Double Camera Platform. It looks a little longer than I would like, but I'll look for something similar, but a few inches less in length.

EDIT: Upon further thought, I don't think that 430 or similar device will work for me. It attaches directly to a tripod via a 3/8" mount. I want my video head on the tripod with the camcorder (plus mic) attached to the head, and the monitor mounted to the tripod in such a way that panning the video head doesn't pan the monitor. So I think Jeff's articulating arm suggestion is the best, or maybe only, option.

By the way for anyone reading this who is considering ordering the monitor, I ordered it last night from Amazon for $339.26. It is still that price today as I write this. That's about the best price I have seen.

Kirk Candlish · April 13th, 2011, 03:57 PM

Quote:

Originally Posted by Chris Rentzel

I suppose I would be angling it back a few degrees? Maybe that would make the clearance.

Exactly. Whether you're shooting with the camera below eye level you'll be angling it.

Jeff Harper · April 13th, 2011, 04:01 PM

I don't know what could be a better solution for the monitor. It was a sweet setup, and very impressive looking. I agree the bar is not so hot. I have a much larger one, and have two heads on it for two cameras, it is convenient, but how awkard and heavy it is..

Dale McClelland · April 15th, 2011, 08:50 PM

Sorry to be-labor my questions about mounting the CLM-V55 on a tripod, but I have another question about Jeff's articulating arm method.

I have researched the Manfrotto Super Clamp and Magic arm and now understand their purpose. They are bigger/heavier than I need for the monitor, but assuming for the moment I use them or smaller versions of the same concept, this is my question:

I understand how the clamp attaches to the tripod, and how the arm attaches to the clamp. The monitor arrived today and now I see that I see it, I don't want to mount it directly via to a tripod stud. I will want to use the shoe mount adapter that came with it because that is what provides the tilt capability. What I don't understand is what piece has a shoe mount on it that the monitor's shoe adapter will attach to.

Jeff, in addition to the arm and the clamp, in your earlier post you mentioned an "extender" and a "shoe mount for the end of the arm". Can you describe those for me? Which piece has the shoe that the monitor mounts on? And what is the sequence of the pieces after the arm is attached to the clamp? (Extender attaches to arm and the the shoe adapter attaches to the extender and the monitor to the shoe adapter -- or do I have it backwards)?

Sorry to be so dense, but I'm having a hard time visualizing what I need. If the small local photography shop can't fix me up, I will need to order something from B&H, so I want to understand what to order. So if Jeff or anyone else can provide some guidance, I would appreciate it.

Thanks.

Kirk Candlish · April 15th, 2011, 09:01 PM

The shoe mount adapter has a 1/4 20 threaded socket in the base.

You should be able to screw your tripod into it and have the full benefits of this mount.

Dale McClelland · April 15th, 2011, 09:40 PM

Thanks Kirk, now that you mention it, I see the tripod socket in the end of one of the adapters (but not the other one - I'm not sure which adapter I need to use yet). But I have a video head mounted on my tripod's threaded stud, with the camcorder/quick attach plate mounted on the head. So that leaves no place to screw the monitor's adapter onto? (I would mount the monitor in my Sony camcorder's AIS shoe (with cold shoe adapter), but I have a Rode microphone in the shoe.)

I don't want to use a second tripod for the monitor. I will be using the whole setup at my grandchildren's elementary school plays and programs where my tripod already takes up more floor space in the crowded gym than I would like (or the parents of the other kids would like).

Kirk Candlish · April 15th, 2011, 10:13 PM

I missunderstood, thought you wanted to mount it to the triod.

Do a search for Tecnec brand mount PD-05020 or something similar at the usual vendors

Kirk Candlish · April 15th, 2011, 10:21 PM

There are plenty of monitor mount options out there. You need something double the shoe mount or attach to the tripod leg. Here's a couple more options.

Welcome to Cineroid Homepage!

Dale McClelland · April 16th, 2011, 09:37 AM

Quote:

Originally Posted by Kirk Candlish

I missunderstood, thought you wanted to mount it to the triod.

Do a search for Tecnec brand mount PD-05020 or something similar at the usual vendors

I probably misled you when I asked in an earlier post if the monitor has a tripod socket.

Thanks for your advice. I will look for a product like the Tecnec and will also look at the Cineroid link you posted.

April 12th, 2011, 11:13 PM	#46
Chris Rentzel Regular Crew Join Date: Nov 2006 Location: Dallas, TX Posts: 60	Re: Sony Monitor for Alpha SLT/DSLRs Can someone tell me a height measurement from bottom of hot shoe adapter to the top of the monitor? Thanks!

April 13th, 2011, 12:20 AM	#47
Kirk Candlish Regular Crew Join Date: Feb 2004 Location: Southern, CA Posts: 198	Re: Sony Monitor for Alpha SLT/DSLRs 5 5/8" with the adapter straight up. Can't imagine you're run it that way though.

April 13th, 2011, 04:35 AM	#49
Jeff Harper Inner Circle Join Date: Jun 2005 Location: Cincinnati, OH Posts: 8,425	Re: Sony Monitor for Alpha SLT/DSLRs I should add that with the arm I mentioned you are able to position the monitor directly next to your camera. __________________ "The horror of what I saw on the timeline cannot be described."

April 13th, 2011, 04:01 PM	#53
Jeff Harper Inner Circle Join Date: Jun 2005 Location: Cincinnati, OH Posts: 8,425	Re: Sony Monitor for Alpha SLT/DSLRs I don't know what could be a better solution for the monitor. It was a sweet setup, and very impressive looking. I agree the bar is not so hot. I have a much larger one, and have two heads on it for two cameras, it is convenient, but how awkard and heavy it is.. __________________ "The horror of what I saw on the timeline cannot be described."

April 15th, 2011, 08:50 PM	#54
Dale McClelland Regular Crew Join Date: Jul 2008 Location: Fort Wayne, IN Posts: 60	Re: Sony Monitor for Alpha SLT/DSLRs Sorry to be-labor my questions about mounting the CLM-V55 on a tripod, but I have another question about Jeff's articulating arm method. I have researched the Manfrotto Super Clamp and Magic arm and now understand their purpose. They are bigger/heavier than I need for the monitor, but assuming for the moment I use them or smaller versions of the same concept, this is my question: I understand how the clamp attaches to the tripod, and how the arm attaches to the clamp. The monitor arrived today and now I see that I see it, I don't want to mount it directly via to a tripod stud. I will want to use the shoe mount adapter that came with it because that is what provides the tilt capability. What I don't understand is what piece has a shoe mount on it that the monitor's shoe adapter will attach to. Jeff, in addition to the arm and the clamp, in your earlier post you mentioned an "extender" and a "shoe mount for the end of the arm". Can you describe those for me? Which piece has the shoe that the monitor mounts on? And what is the sequence of the pieces after the arm is attached to the clamp? (Extender attaches to arm and the the shoe adapter attaches to the extender and the monitor to the shoe adapter -- or do I have it backwards)? Sorry to be so dense, but I'm having a hard time visualizing what I need. If the small local photography shop can't fix me up, I will need to order something from B&H, so I want to understand what to order. So if Jeff or anyone else can provide some guidance, I would appreciate it. Thanks.

April 15th, 2011, 09:01 PM	#55
Kirk Candlish Regular Crew Join Date: Feb 2004 Location: Southern, CA Posts: 198	Re: Sony Monitor for Alpha SLT/DSLRs The shoe mount adapter has a 1/4 20 threaded socket in the base. You should be able to screw your tripod into it and have the full benefits of this mount.

April 15th, 2011, 09:40 PM	#56
Dale McClelland Regular Crew Join Date: Jul 2008 Location: Fort Wayne, IN Posts: 60	Re: Sony Monitor for Alpha SLT/DSLRs Thanks Kirk, now that you mention it, I see the tripod socket in the end of one of the adapters (but not the other one - I'm not sure which adapter I need to use yet). But I have a video head mounted on my tripod's threaded stud, with the camcorder/quick attach plate mounted on the head. So that leaves no place to screw the monitor's adapter onto? (I would mount the monitor in my Sony camcorder's AIS shoe (with cold shoe adapter), but I have a Rode microphone in the shoe.) I don't want to use a second tripod for the monitor. I will be using the whole setup at my grandchildren's elementary school plays and programs where my tripod already takes up more floor space in the crowded gym than I would like (or the parents of the other kids would like).

April 15th, 2011, 10:13 PM	#57

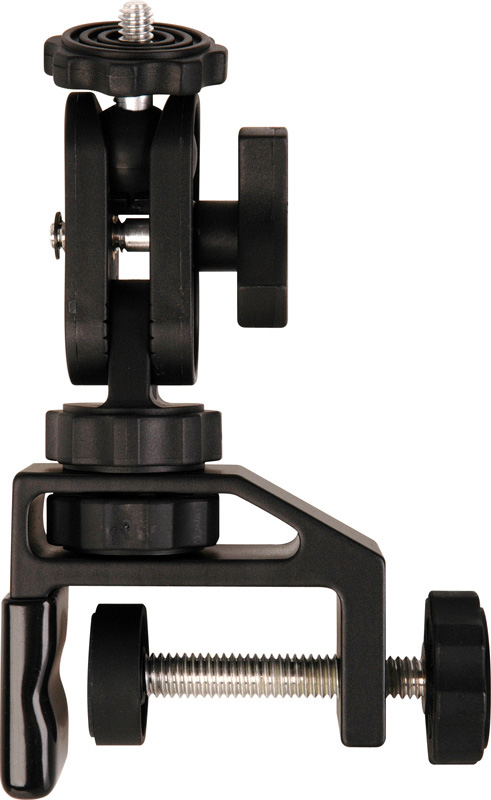

Kirk Candlish Regular Crew Join Date: Feb 2004 Location: Southern, CA Posts: 198	Re: Sony Monitor for Alpha SLT/DSLRs I missunderstood, thought you wanted to mount it to the triod. Do a search for Tecnec brand mount PD-05020 or something similar at the usual vendors Attached Thumbnails
