New 7" HDSDI and HDMI Monitors from Marshall

[Jim Martin]

The Marshall 70XP now comes with loop-thru on the HDMI ! ! ! ......for about $80 more than the previous 70XP

Jim Martin
FilmTools.com

[Dave Morrison]

Jim, do you have a link to that "loop-thru" version? I can't find any listing that shows anything apart from the single input version.

[Jim Martin]

Here's the link ........
Marshall Electronics - V-LCD70XP-HDMIPT 7" Small Portable Field / Camera-Top DSLR LCD Monitor with HDMI Loop-Through


Jim Martin
FilmTools.com

[Dave Morrison]

Thanks for the link, Jim. One related question: If you have either the HDMI model or the SDI model and feed it a signal, will there be any video appearing on any of the other connections or does the signal only appear on the loop-thru connection?

[Jim Martin]

You send it in HDMI, it goes out HDMI. You send it in HD SDI, it goes out HD SDI. No converting or cross pass through.

Jim Martin
FilmTools.com

[Dano Motley]

a question for on camera monitor. should i go with sdi or hdmi. is there a gret loss of quality with either of the two. i am looking at the 7" marshall monitor.

Thanks in advance,
Dano

[Guy Cochran]

Originally Posted by Dano Motley

a question for on camera monitor. should i go with sdi or hdmi. is there a gret loss of quality with either of the two. i am looking at the 7" marshall monitor.

Thanks in advance,
Dano

If your camera has both HDMI and HDSDI outputs, I'd suggest going HD-SDI. The connector is solid and you can perform much longer runs with HD-SDI if needed. In my experience, the quality of the image will be the same in runs under 50' for both HD-SDI and HDMI.

Of course the HDMI monitors are less expensive if cost is a concern. However, being able to throw a right angle adapter BNC and have a solid connector that won't break in the field is a big concern for run n gun shooting.

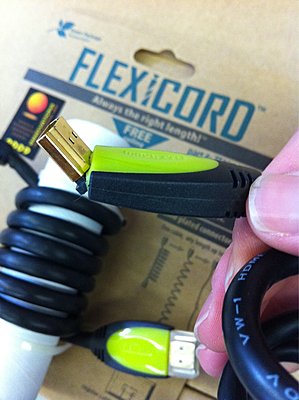

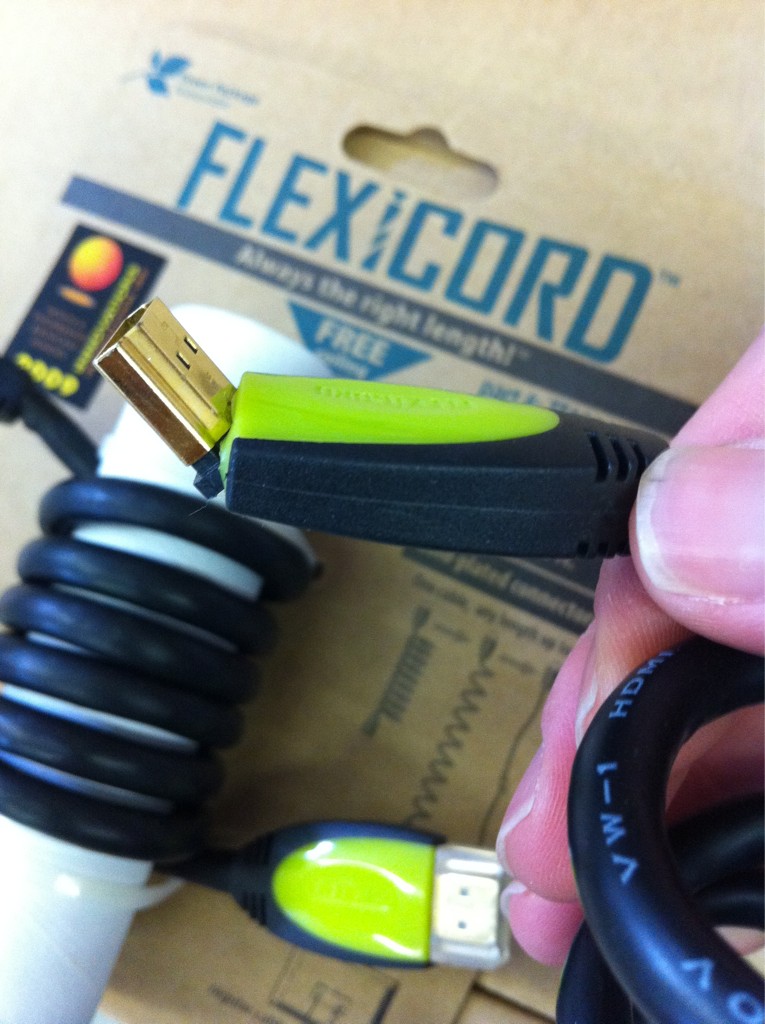

Here's a picture of cool new coiled flexible HDMI cable called the Flexicord I bought and broke on first use.

[Dano Motley]

great advice. thank you.

dano
