Using a Manfrotto 501hdv head with a Slik U212 tripod? at DVinfo.net

Michael Clark · May 20th, 2010, 04:57 PM

I just recently bought a manfrotto 501hdv head, primarily to use with my new glidecam. I wondered though if it were possible to completely remove the panhead on my Slik U212 and mount the 501hdv on top instead? It's such a better head, I would really like to find another use for it without having to buy a manfrotto tripod of course. If this is possible, please give me details on how. Thanks!

Chris Soucy · May 20th, 2010, 08:33 PM

Yes, you should be able to.

First you need to detach the existing tripod head, best acheived by tightening the pan lock as tight as you can then turning the head counterclockwise relative to the tripod body.

It should unscrew to reveal a 1/4" - 20 threaded bolt.

Then you need one of these:

Manfrotto | 088LBP Female 1/4"-20 to Male | 088LBP | B&H

or one of these:

http://www.bhphotovideo.com/c/product/546493-REG/Manfrotto_088_088_Female_1_4_20_to.html

screwed onto the 1/4" bolt to convert it to fit the 3/8" hole in the bottom of the Manfrotto head.

Screw on the new head and it's job done.

The head will have a tendency to unscrew when performing a right to left pan with anything more than the slightest drag applied, but that comes with the territory.

Michael Clark · May 25th, 2010, 06:58 AM

Sounds great. I just put in an order for the Manfrotto 088. I had a wedding Saturday and tried stacking the 501hdv head on the glidetrack, and the glidetrack on the Slik u212. Didn't work (wobbly). Sounds like yours is a good solution. Thanks.

Michael Clark · May 25th, 2010, 06:44 PM

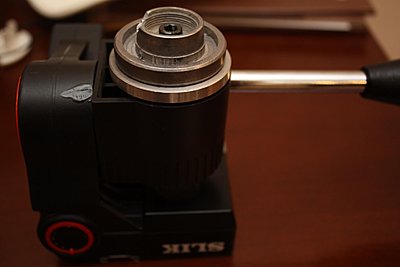

To quote someone else from this board: "Cause of death: Autopsy". Not sure whether I've ruined my Slik u212... I was able to screw part of it off, but I don't think I've got it right. When I was taking it off, I snapped part of the thread. Luckily, I can at least still screw the head back onto the tripod. Is anyone able to tell me where I've gone wrong?

Chris Soucy · May 25th, 2010, 07:50 PM

As I said in my mail, I was looking for the link to one of these with the head removed, but it is eluding me so far, and I'm wondering if I just imagined it having read the spec's here:

Slik | U212 Tripod | 612-212 | B&H Photo Video

It definately says "Head Mount thread size". If it is correct then I can only assume the head has decided to dismantle somewhere else but the head mount, but what, I can't say as I cannot find a clear enough photo of one of those heads to know how it's constructed.

Maybe someone else with one in their possesion can offer some ideas, gotta be a few on this board as there seem to be millions of them out there.

CS
