Before I update my EX1R to Version 1.30... at DVinfo.net

Jack Zhang · July 31st, 2012, 02:37 AM

I need to know a few things:

Do the clips recorded work in Clip Browser 2.6? (I want to keep my Acquisition tab, thank you very much)

Does overcranking with a Media Adapter still work? (My MEAD-SD01 happily overcranks on Sandisk UHS-1 cards on 1.20)

Finally, does overcranking work on XQD?

If at least the first two are answered, I can feel confident upgrading my EX1R to 1.30.

To all confused, where is the link for 1.30? Search for the EX1 and EX1R on this site to get the SxS update bins: Sony Support Centre (Some machines redirect you away from this site if you browsed for instance to the Sony UK site. It will be hit and miss.)

Jack Zhang · August 2nd, 2012, 03:37 AM

So, apparently this firmware was a leak because all other machines I've visited the site on now no longer allow you to get the firmware. If any of you in Europe are able to get the firmware, please say that this isn't a leak.

Otherwise, looks like we need to wait longer for official XQD support.

In the meantime, this is the Google Cache of the page for the EX1R's 1.30 Firmware: https://webcache.googleusercontent.c...ient=firefox-a

Graeme Fullick · August 3rd, 2012, 03:24 PM

Jack,

I had my EX1 updated to V1.30 two weeks ago at my dealer. All seems to be working as per normal with SXS and Sandisk Ultra SD 32g chips so far.

It definitely is not vapour ware as I have it.

All the best,

Graeme

Jack Zhang · August 3rd, 2012, 03:49 PM

Our local dealer refuses to update to it until it appears on the North American microsite. So far, it hasn't.

Are you still able to Overcrank on SDHC? Are you still able to view your clips in XDCAM Clip Browser 2.6?

Graeme Fullick · August 3rd, 2012, 07:06 PM

Jack,

I have overcranked at 30fps in 1080p without problems (I am in a PAL country), but have not yet tried 720p as I don't use it.

Will have a look at clip browser today and get back to you.

All the best,
Graeme

Jack Zhang · August 3rd, 2012, 09:15 PM

720p 24p Rec / 60 Capture is the most critical one. Format 1280/24p, frame rate 60.

Clip Browser is important too, cause I hope they're not mandating the F3's 1.2 firmware and above XDCAM Browser only rule. (XDCAM Browser strips the Acquisition Tab and you have to pay $300 to get it back, when it was free in Clip Browser)

If anyone can do XQD overcrank testing on this firmware too, that would really be appreciated.

Graeme Fullick · August 3rd, 2012, 09:55 PM

Jack,

I can confirm that 720/60P works fine to SD chips. Just did a couple of shoots of 2 or so minutes and had no problems.

I can also view clips in XDCAM browser V2.1 (the latest). Cannot confirm for the older version as I don't have it. If any one can direct me to where I can get the old Clipbrowser V2.6 I will give it a try.

All the best,

Graeme

Jack Zhang · August 7th, 2012, 04:05 AM

Go to the Sony Microsite for your area ( Sony Asia in your case: Welcome : Sony Professional Solutions Asia Pacific ) and just look up the EX1 (NOT EX1R) in the Support section. Clip Browser 2.6 should be available for both Mac and Windows.

Otherwise, Look up "Legacy XDCAM Applications" on the Sony US XDCAM Microsite and XDZ-P1 should be Clip Browser 2.6 http://www.sony.com/xdcam-software

Sorry for the delayed response, didn't realized you edited your post until a couple of days later.

Looks like the Sony UK site has it, but it mandates compulsory registration to get the file. This is easily bypassable if you know the "BugMeNot" trick though:
http://www.sony.co.uk/pro/support/so.../1237486650474 (EX1R)
http://www.sony.co.uk/pro/support/so.../1237486650470 (EX1)

Jack Zhang · August 7th, 2012, 05:07 AM

Double posting cause I managed to get it to get the update to work on a SDHC card.

Clip Browser 2.6 still works. Overcrank still works. I'm extremely happy.

Protip: To make updates work via SDHC, you need the Sony SDHC adapter and you have to put the update .BIN file in the SONY folder. There should be a BPAV folder and the update .BIN file in the SONY folder once you're done.

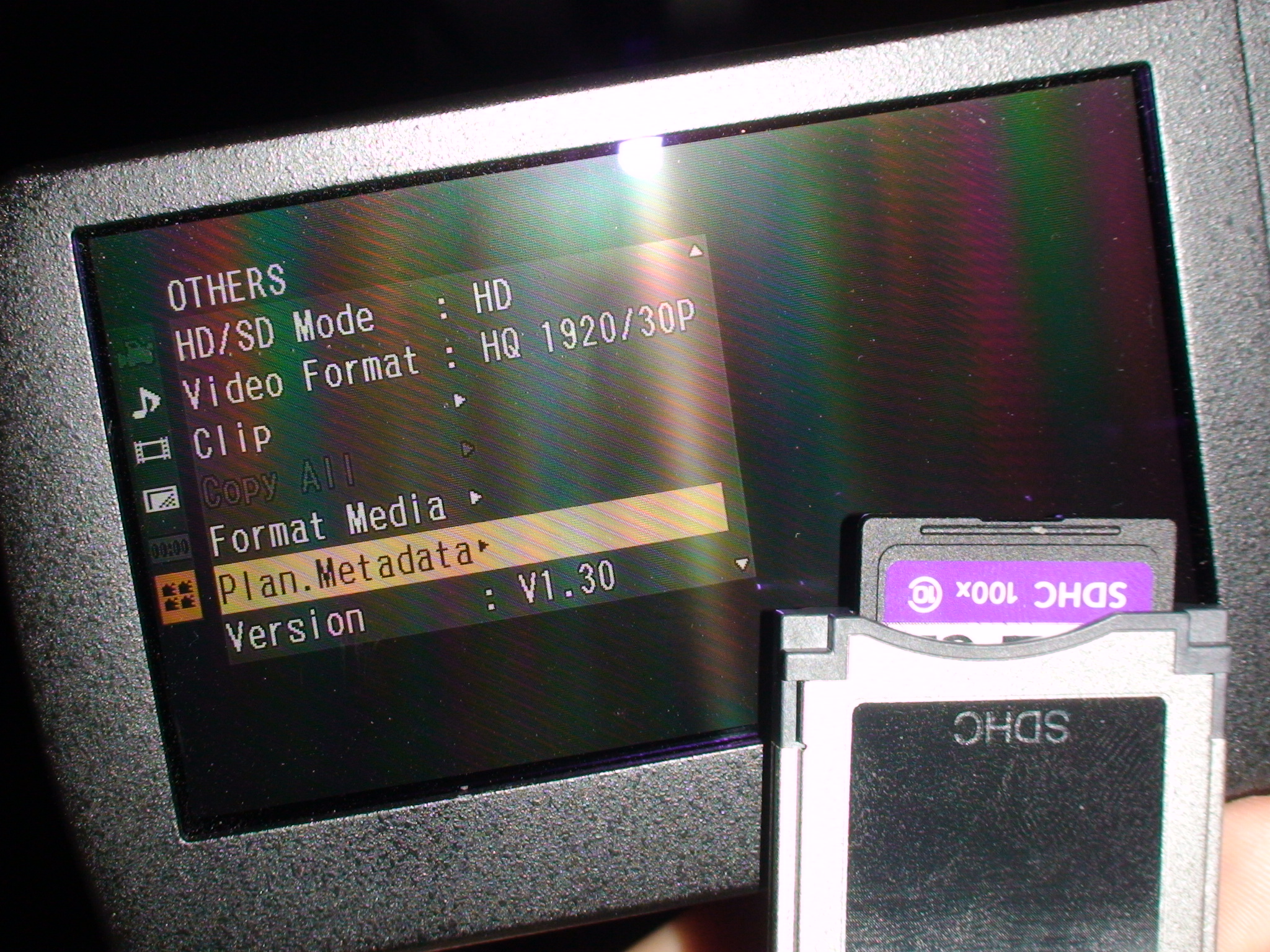

I've attached photo proof.

Harro Skapinskas · October 9th, 2012, 11:56 PM

Can someone please let me know what site will allow me to obtain v1.30 firmware for my Sony EX1?

Jack Zhang · October 10th, 2012, 11:14 AM

See 2 posts above yours. Use the BugMeNot trick to login to the site.

Mark Chafe · October 12th, 2012, 04:38 AM

Sorry but Im just want to make it clear before I download and update. Does this work for the EX1 as well as the EX1R or just the EX1R? Also, would this bring DVCAM recording ability to the EX1, or is this something that can be added in a firmware upgrade.

Thanks
Mark

Chris Medico · October 12th, 2012, 05:17 AM

This thread is for the EX1r only I'm sorry to report. The original EX1 will not record DVCam. There is no firmware for that.

Depending on what firmware level your EX1 is current at the upgrade isn't straightforward to perform. Sony wants you to send the camera to them for the service. You can find the firmware around if you look for it though.

Jack Zhang · October 15th, 2012, 04:35 PM

Yes, updating your EX1 will not give DVCAM functionality. That's hardware based.

Likewise, updating your EX1 or EX1R will not give you 50Mbps 4:2:2.

1.30 is available on the Sony UK site with the links I posted a few posts above.
