Panasonic AF101 Footage at DVinfo.net

Joe Lawry · October 12th, 2010, 04:26 AM

So Heres what i can tell you.

We shot at an ISO of 200. Shutter off (shutter wasnt engaging to 180 so we left it)

We rolled internally to SDHC cards and then externally to a AG HPG20 recording AVC Intra 100.

Gamma was the 709 standard, Matrix HD Norm.. everything else set of 0.

We used a 24mm, 50mm and & 85mm for almost everything, Sitting at about t4 for most of it,, and wide open t1.9 on a couple of those shots. All Carl Zeiss Ultra Primes.

I did not edit this, but i'll do my best to get hold of all the footage including the AVCHD material over the next week.. because thats really want i want to see/grade, and will upload some less compressed files.

But, from what i saw in the suite, the 24mbps looked damnnn close to the avc intra with no grading.

This was shot yesterday.. cut quick and thus compressed quickly..

Enjoy.

Thomas Smet · October 12th, 2010, 09:08 AM

bye bye aliasing!

Seriously well worth the price over a DSLR.

Thanks for sharing the footage.

Paul Cronin · October 12th, 2010, 11:25 AM

Thanks for posting Joe,

Nice glass out front helps, either way this camera is a game changer when it comes to SDOF for a price we all can afford. Be interesting what Sony will do so they don't loose this market.

Hope to rent one when them come out to check it out with different glass and my Nano.

Ryan Mast · October 12th, 2010, 04:17 PM

Thanks for posting this -- it made my day.

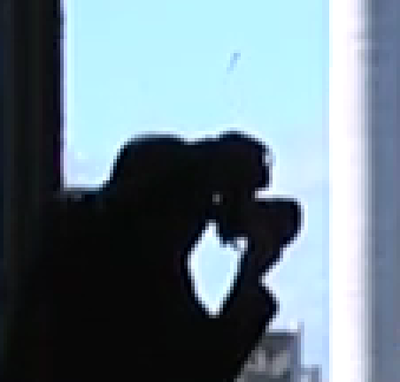

Do you have any example footage with sharpening turned off? The current setting seems fairly heavy, particularly with the hard silhouettes. Detail in the model's hair seems to hold up remarkably well, though.

Joe Lawry · October 12th, 2010, 05:41 PM

nope. we had 5 hours with the camera, that was it.

sharpening was set to 0 from memory.

Ryan Mast · October 12th, 2010, 08:41 PM

Quote:

Originally Posted by Joe Lawry

sharpening was set to 0 from memory.

Is there a negative sharpening setting (like what the JVC's have)? Something to turn it off completely?

What other color spaces or gamma settings does the camera offer? Anything similar to JVC's flat "Film Out" gamma or a LogC-like setting?

Joe Lawry · October 12th, 2010, 08:45 PM

the camera has the exact same gamma and colour space settings as the HVX/HPX series.

didnt look into any of these settings really sorry, no time.

Jan Crittenden Livingston · October 17th, 2010, 06:13 AM

Quote:

Originally Posted by Ryan Mast

Is there a negative sharpening setting (like what the JVC's have)? Something to turn it off completely?
What other color spaces or gamma settings does the camera offer? Anything similar to JVC's flat "Film Out" gamma or a LogC-like setting?

All of the tools can go positive or negative, and there are seven different gamma curves in the camera. Unfortunately we have not named them Film Out or LogC so I am not sure what we have matches that of the JVC. We do have one that is a Cinelike D that might come close to the Film Out but not sure of the LogC.

Best,

Jan

Ryan Mast · October 18th, 2010, 08:39 AM

Hi Jan,

The JVC's "film out" setting is very flat. The way I have my HM700's processing settings configured, it doesn't do much correction to the image when recording, so it's more flexible to work with in post when I'm grading. The output looks flat, but it actually gives me more useful latitude than Canon's DSLRs at their flattest setting, especially when dealing with saturated colors (like with lights in a rock concert).

Jan, thanks so much for being so active online and at expos to answer questions about the new Panasonic cameras!
