Are there any small portable batteries backups I can use for an external hard drives?
I am about to go do some filming on the road. While traveling, I want to be able to edit some footage I have on these external hard drives. I usually only use these externals when they are plugged into a backup battery so that I dont need to worry about the power cutting out and the externals shutting off. I use the APC Back-UPS which is great but I'm wondering, however, if there are any small, more portable battery backups I could purchase. My APC backup is big and kind of bulky, and i don't need eight inputs. I just need 2-3 for the externals I'll be running.
So.....quickly put.....are there any super small portable battery backup options I can carry around with me or are they all routinely over ten pounds? |
|
|
|
May 12th, 2013, 12:43 AM
|
#2 |
|
Major Player
Join Date: Dec 2010
Location: New Zealand, Rapaura (near Blenheim)
Posts: 434
|
Re: Are there any small portable batteries backups I can use for an external hard dri

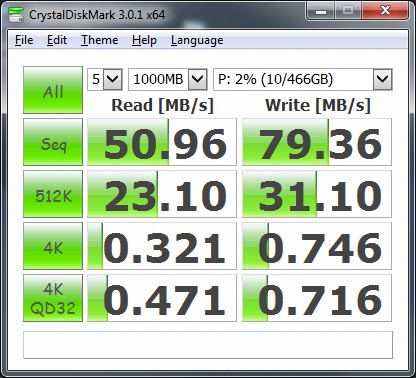

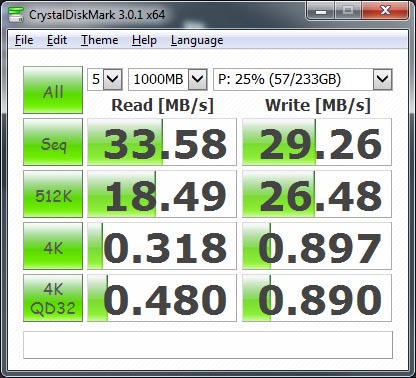

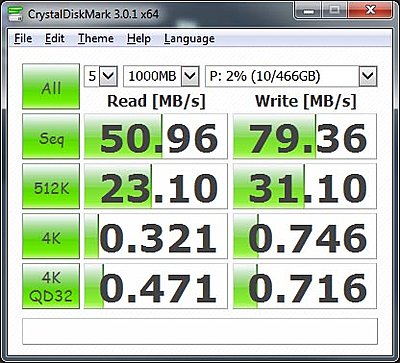

Not entirely sure I am understanding all you are saying, but the small pocket drives powered from the USB port might be useable. In the interests of a complete reply, I just checked a couple of pocket drives with Crystal Disk Mark. The USB2 drive uses two USB connections - one for power and the other for data. The USB3 drive only uses one connection. Neither drive is going to feed your NLE with 1080 footage fast enough. I am not sure if the third file uploaded, but that is for a WD USB3 My Book external with its own PSU. That's much faster.
Just checked the preview, and the last file does not appear to have u[loaded, so I'll it in another post.
__________________
Stills at: www.flickr.com/photos/trevor-dennis/ |
|
|
|
|
May 12th, 2013, 12:46 AM
|
#3 |
|
Major Player
Join Date: Dec 2010
Location: New Zealand, Rapaura (near Blenheim)
Posts: 434
|
Re: Are there any small portable batteries backups I can use for an external hard dri
Sorry, DVInfo won't play nicely. Figures for the WD drive are
110 - 106 37 -59 .460 - .938 .644 - .961
__________________
Stills at: www.flickr.com/photos/trevor-dennis/ |
|
|
|
|
May 12th, 2013, 02:04 PM
|
#4 | |
|
Regular Crew
Join Date: Jan 2012
Location: Sweden
Posts: 70
|
Re: Are there any small portable batteries backups I can use for an external hard dri
Quote:
These are external 3.5" drives in a raid enclosure using 115 V right? If you really need speed and mobility, there is two paths I would go. Either a small 2.5" raid solution with firewire 800. Or a thunderbolt driven single SSD drive. Both these have enough bus power to drive the raid/SSD without an external power source. In case you dont have a FW800/Thunderbolt port, use USB3 raid chassie that use a 12V feed and run it on a large Li-ion external battery pack with 12V output. These solutions will make it easier, lighter and without the risks that 115V/230V come with. |
|
|
|
|
|
May 13th, 2013, 12:27 PM
|
#5 |
|
Regular Crew
Join Date: Jun 2010
Location: Philadelphia, United States
Posts: 163
|
Re: Are there any small portable batteries backups I can use for an external hard dri
They are not in a raid enclosure. They are just two, standalone 2TB g-tech hard drives.
I guess this means I'm out of options? |
|
|
|
|
May 13th, 2013, 12:56 PM
|
#6 |
|
Regular Crew
Join Date: Jan 2012
Location: Sweden
Posts: 70
|
Re: Are there any small portable batteries backups I can use for an external hard dri
Do the G drives have a 115/230 AC direct input or are rhey fed via an external 12v DC power supply?
If they use DC you could use a battery pack directly without going via inversion through a UPS. Last edited by Petter Flink; May 13th, 2013 at 01:41 PM. |
|
|
|
|
| ||||||
|
||||||
|
|
