Tim Dashwood · August 11th, 2009, 10:08 PM

I can't quite figure out why this is happening. I'm using an Intensity Pro card.

I duplicated the Blackmagic HDTV 1080i 59.94 - Apple ProRes 422 (HQ) preset and made new presets with ProRes 422 (LT), ProRes 422 (Proxy) and ProRes 4444.
I also made sure to specify "interlaced" in the advanced settings of the codec.

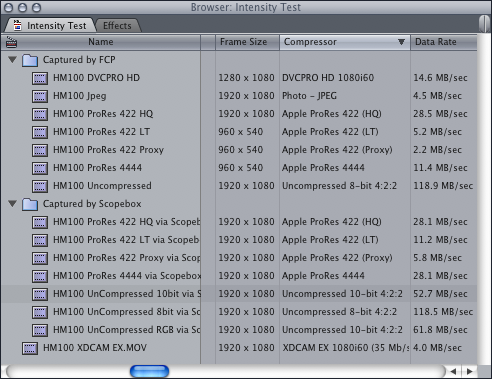

The weird thing is that the clips captured with the new settings are all half resolution at 960x540. The 422 HQ setting captures fine at 1920x1080.

The really weird thing is that I captured using the new ProRes codecs with Scopebox 2 and the new codecs worked fine.

August 11th, 2009, 10:08 PM	#1
Tim Dashwood Wrangler Join Date: Aug 2005 Location: Toronto, ON, Canada Posts: 3,637	New ProRes codecs (LT,Proxy & 4444) cut res. in half on capture I can't quite figure out why this is happening. I'm using an Intensity Pro card. I duplicated the Blackmagic HDTV 1080i 59.94 - Apple ProRes 422 (HQ) preset and made new presets with ProRes 422 (LT), ProRes 422 (Proxy) and ProRes 4444. I also made sure to specify "interlaced" in the advanced settings of the codec. The weird thing is that the clips captured with the new settings are all half resolution at 960x540. The 422 HQ setting captures fine at 1920x1080. The really weird thing is that I captured using the new ProRes codecs with Scopebox 2 and the new codecs worked fine. Attached Thumbnails __________________ Tim Dashwood
