XLH1 firewire connectivity issues at DVinfo.net

Matthew Petersen · November 24th, 2008, 05:37 PM

I'm just wondering if anyone else is having connectivity issues with their XLH camera?

I'm having trouble putting my finger on the exact issue, but the symptom appears to be that, after a reboot, the computer correctly identifies the camera and I can capture into Premier or HDVSplit no problem.

However, after turning the camera off or changing modes, the computer seems to "drop" the camera and won't see it again till after a reboot.

It feels like a 1394 thing to me (as opposed to a camera issue) but if anyone has any ideas I'd be grateful. I'm on Dell Precision 5400, XP32, SP3.

Matthew

Patrick Byers · November 24th, 2008, 06:42 PM

Quote:

Originally Posted by Matthew Petersen

I'm just wondering if anyone else is having connectivity issues with their XLH camera?

I'm having trouble putting my finger on the exact issue, but the symptom appears to be that, after a reboot, the computer correctly identifies the camera and I can capture into Premier or HDVSplit no problem.

However, after turning the camera off or changing modes, the computer seems to "drop" the camera and won't see it again till after a reboot.

It feels like a 1394 thing to me (as opposed to a camera issue) but if anyone has any ideas I'd be grateful. I'm on Dell Precision 5400, XP32, SP3.

Matthew

Matthew,
I have similar issues with Final Cut. Generally, I am able to have FCP recognize the XLH1 when I quit FCP and then restart with the camera on and in "VCR" mode. It's frustrating, but I have gotten so used to this work-around that I had forgotten about it until seeing your post. I'll be anxious to see if someone out there knows what causes it. At least we know it is not solely a Premier or Final Cut issue. Also, I'm on a Mac Pro Dual Quad 2.8, so it's not a Dell thing, either.

Daniel Lopez · December 1st, 2008, 04:57 PM

Quote:

Originally Posted by Patrick Byers

Matthew,
I have similar issues with Final Cut. Generally, I am able to have FCP recognize the XLH1 when I quit FCP and then restart with the camera on and in "VCR" mode. It's frustrating, but I have gotten so used to this work-around that I had forgotten about it until seeing your post. I'll be anxious to see if someone out there knows what causes it. At least we know it is not solely a Premier or Final Cut issue. Also, I'm on a Mac Pro Dual Quad 2.8, so it's not a Dell thing, either.

Patrick I have to do the same thing with final cut. It does this with both of my HD cameras. I have to close FCP and restart it to Log and Capture. Funny I thought it was just me. I have gotten used to restarting FCP when I capture. It does this same thing with a Canon HV20 when you try to capture as well.

Matthew Petersen · December 1st, 2008, 05:21 PM

Thanks guys, I don't feel so lonely now!

Having also used a PD150 and some basic canon cameras lately, it seems that the HDV cameras "connect" or are "seen" by the machine as a different device to a plain DV camera.

This might have something to do with it.... but I'd love to know how to fix it! I suspect it has something to do with the chipset on my firewire card, but i can't be sure.

MP

Rob Bruijgoms · December 7th, 2008, 10:32 AM

I've got a similar problem...but the solutions mentioned above don't work with my XLH1...
I want to capture video from the deck (it's HDV 1080i 50 PAL footage) into Final Cut Express HD, version 3.5.1.

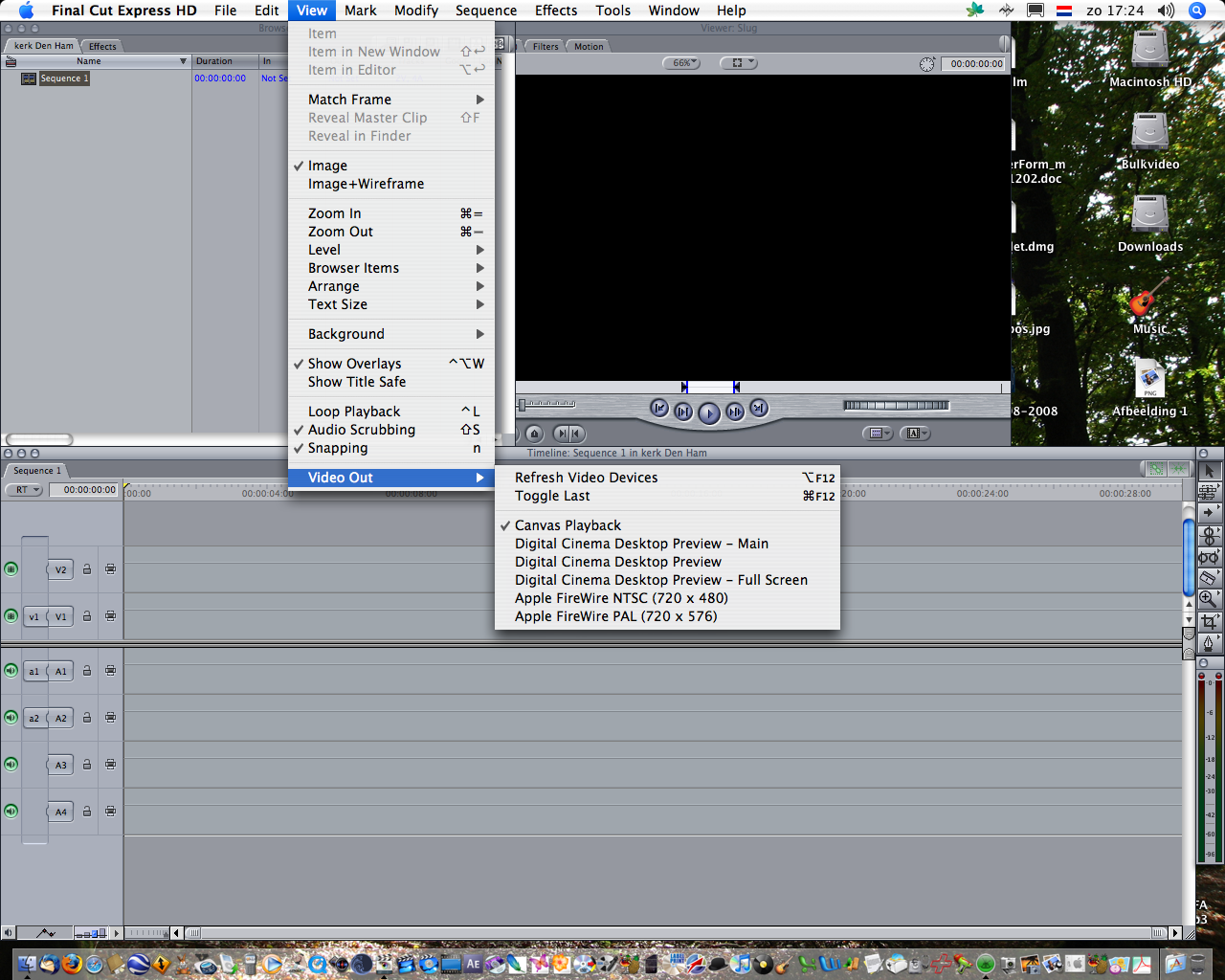

In FCE I can't select an HDV camera under 'VIEW' > 'VIDEO OUT' (see pic).

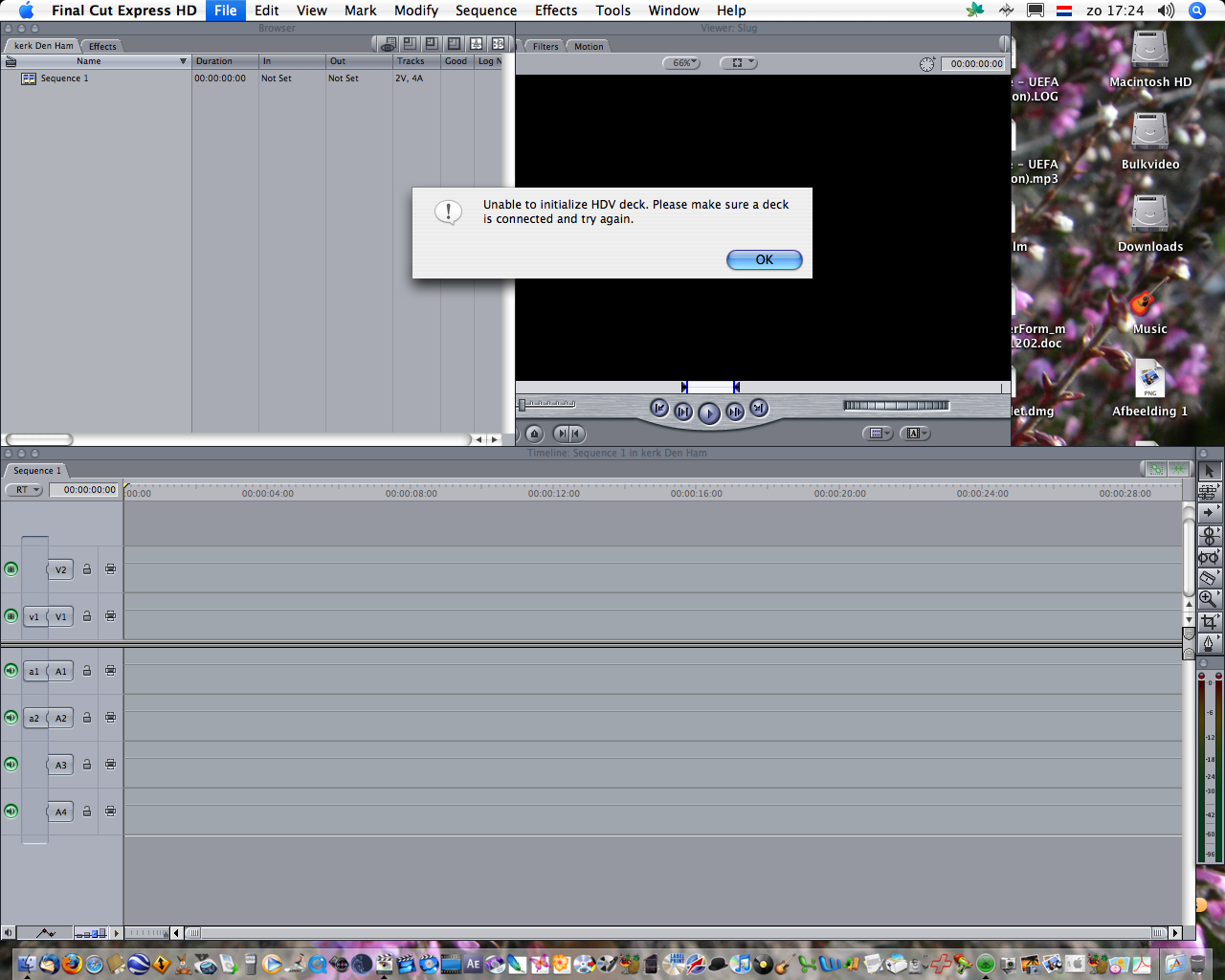

When I want to start up the capture mode in FCE, it says it can't find an HDV deck (see second pic).

What should I do?
Thanks for helping!

Patrick Myers · December 21st, 2008, 10:17 AM

Quote:

Originally Posted by Matthew Petersen

I'm just wondering if anyone else is having connectivity issues with their XLH camera?

I'm having trouble putting my finger on the exact issue, but the symptom appears to be that, after a reboot, the computer correctly identifies the camera and I can capture into Premier or HDVSplit no problem.

However, after turning the camera off or changing modes, the computer seems to "drop" the camera and won't see it again till after a reboot.

It feels like a 1394 thing to me (as opposed to a camera issue) but if anyone has any ideas I'd be grateful. I'm on Dell Precision 5400, XP32, SP3.

Matthew

To the orignial question. I had this problem to begin with. But after a few tests this is what worked for me.

I would connect the fire wire cable to the computer and the camera. Then turn on the computer. Leave the camera off.

After the computer is booted I would open premier and open the capture window. Then turn the power wheel on my XH-A1 to the VCR mode. After a few seconds it would appear in the window and would work properly.

I can switch modes and then come back to VCR mode and it will still work.

I am running a Quad Core 2.5 PC with 4 gigs of ram and Windows Vista Ultimate 32 bit.

I don't know if my computer being different matters, I was supprised that Vista already had the drivers for my XH-A1 installed when I first plugged the camera in. I hoped this helped.

Matthew Petersen · December 21st, 2008, 04:47 PM

Thank you Patrick, I will give your process a shot!

MP

Barry Seidner · January 1st, 2009, 10:35 PM

You have to look into the Device Manager to see how the camera is registered to the PC. (Non-MAC man here). If the camera is in HDV mode it comes in as a standard 1394 device and does not appear uniquely. IN this mode the only thing you can do is refresh the 1934 devices. In HDV ->DV mode it comes into Device Manager as a Imaging device and is clearly visable in Device Manager. What you can do is, with the camera on and connected to your PC, open up the camera settings and switch between these two leaving the camera on when switching. That might re-register the camera back into Device Manager as HDV.

Mark Ganglfinger · February 14th, 2009, 03:37 PM

I solved my capture problems that had been bugging me for weeks, by finding a really old firewire card and installing it. All my problems disapeared.

Dan Quintero · February 20th, 2009, 05:40 PM

When FCP doesn't recognize the XLH1, sometimes doing a "Save All" and then going back to Log And Capture will fix it, otherwise, like most everyone else, I restart the program.

November 24th, 2008, 05:37 PM	#1
Matthew Petersen Regular Crew Join Date: Nov 2008 Location: Brisbane, Queensland, Australia Posts: 28	XLH1 firewire connectivity issues I'm just wondering if anyone else is having connectivity issues with their XLH camera? I'm having trouble putting my finger on the exact issue, but the symptom appears to be that, after a reboot, the computer correctly identifies the camera and I can capture into Premier or HDVSplit no problem. However, after turning the camera off or changing modes, the computer seems to "drop" the camera and won't see it again till after a reboot. It feels like a 1394 thing to me (as opposed to a camera issue) but if anyone has any ideas I'd be grateful. I'm on Dell Precision 5400, XP32, SP3. Matthew

December 7th, 2008, 10:32 AM	#5
Rob Bruijgoms Regular Crew Join Date: Apr 2005 Location: Groningen, The Netherlands Posts: 30	I've got a similar problem...but the solutions mentioned above don't work with my XLH1... I want to capture video from the deck (it's HDV 1080i 50 PAL footage) into Final Cut Express HD, version 3.5.1. In FCE I can't select an HDV camera under 'VIEW' > 'VIDEO OUT' (see pic). When I want to start up the capture mode in FCE, it says it can't find an HDV deck (see second pic). What should I do? Thanks for helping! Attached Thumbnails __________________ Gear: JVC GY-HM700, Canon EOS 550D, GoPro Hero HD, Apple MacPro 12-core (2,66 Ghz, 20 GB int. mem.), JVC DT-R24L4D display, Apple Cinema Display 23", FInal Cut Studio 3

January 1st, 2009, 10:35 PM	#8
Barry Seidner New Boot Join Date: Dec 2008 Location: Dallas Posts: 9	I think this might help You have to look into the Device Manager to see how the camera is registered to the PC. (Non-MAC man here). If the camera is in HDV mode it comes in as a standard 1394 device and does not appear uniquely. IN this mode the only thing you can do is refresh the 1934 devices. In HDV ->DV mode it comes into Device Manager as a Imaging device and is clearly visable in Device Manager. What you can do is, with the camera on and connected to your PC, open up the camera settings and switch between these two leaving the camera on when switching. That might re-register the camera back into Device Manager as HDV.

December 1st, 2008, 05:21 PM	#4
Matthew Petersen Regular Crew Join Date: Nov 2008 Location: Brisbane, Queensland, Australia Posts: 28	Thanks guys, I don't feel so lonely now! Having also used a PD150 and some basic canon cameras lately, it seems that the HDV cameras "connect" or are "seen" by the machine as a different device to a plain DV camera. This might have something to do with it.... but I'd love to know how to fix it! I suspect it has something to do with the chipset on my firewire card, but i can't be sure. MP

December 21st, 2008, 04:47 PM	#7
Matthew Petersen Regular Crew Join Date: Nov 2008 Location: Brisbane, Queensland, Australia Posts: 28	Thank you Patrick, I will give your process a shot! MP

February 14th, 2009, 03:37 PM	#9
Mark Ganglfinger Regular Crew Join Date: May 2007 Location: Hermon Maine USA Posts: 138	I solved my capture problems that had been bugging me for weeks, by finding a really old firewire card and installing it. All my problems disapeared.

February 20th, 2009, 05:40 PM	#10
Dan Quintero Regular Crew Join Date: Feb 2009 Location: bend, oregon Posts: 32	When FCP doesn't recognize the XLH1, sometimes doing a "Save All" and then going back to Log And Capture will fix it, otherwise, like most everyone else, I restart the program.
