Kevin Shaw · July 26th, 2006, 10:05 AM

I'm just looking at the pictures and wondering why there's a V1/V2 switch on the analog AV output. Chris?

Chris Hurd · July 26th, 2006, 02:46 PM

Hazarding a *guess* only... but I'll bet I'm right.

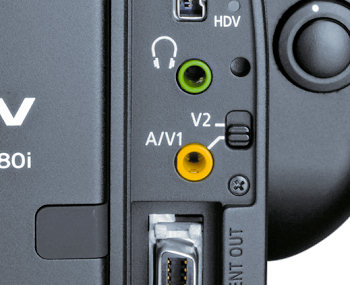

V1 is that standard yellow AV input jack on the back panel. You know, the other end is a breakout cable going to L & R stereo audio, video, and S video. We've all seen that before.

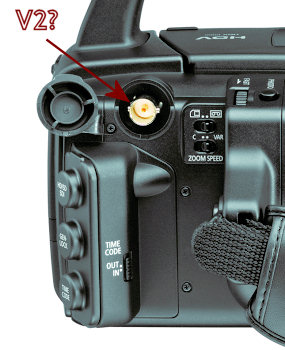

V2 most likely is the composite BNC video jack, just around the corner on the upper right rear of the G1 / A1 body, behind a round rubber connector cover. Attached image shows G1, but A1 is the same.

Heath McKnight · July 26th, 2006, 03:05 PM

Chris,

Do you have a picture of the right side of the camera?

Thanks,

heath

Chris Hurd · July 26th, 2006, 03:08 PM

Third one down from the top of the page at http://www.dvinfo.net/canonxh/articles/images1.php

Click to make it big!
