Old July 11th, 2009, 07:21 AM   #1
Major Player

Join Date: Jan 2008
Location: Orlando, FL
Posts: 558
Is this diffraction?

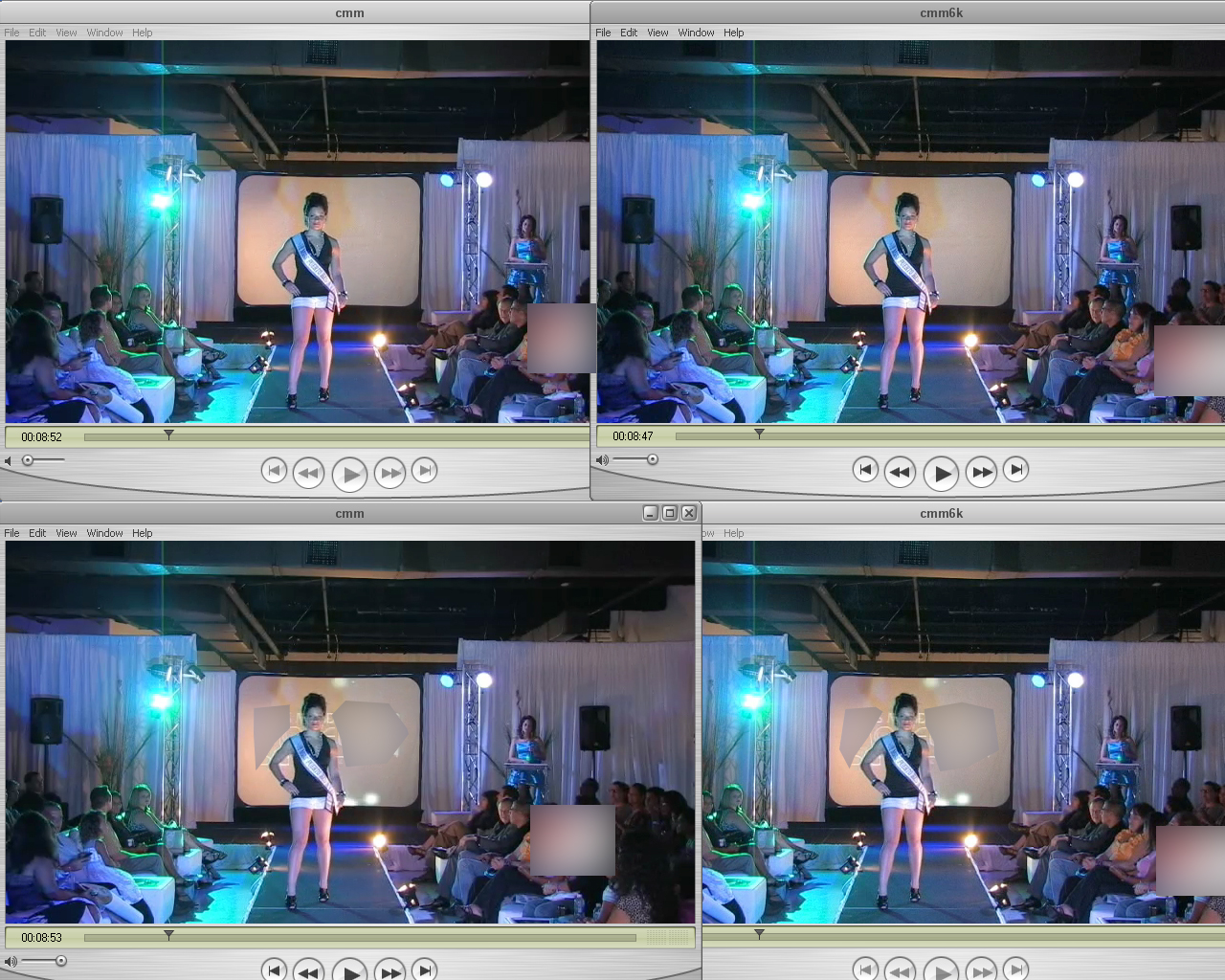

You would think after almost 400 posts I would have asked for advice on my footage by now...well here goes. These are some screen grabs from a recent gig. I'm not sure if this is the best way to get feedback? I will try to post footage tomorrow when I have more time. The client pointed out to me that the models faces were a little distorted at times. Did a quick search, and seems like the problem may be diffraction?? I think the footage is good, but not broadcast worthy.

(from left to right)
1st image: .mov, 2300kbps
2nd image: .mov, 6000kbps
3rd image: .mov, 2300kbps
4th image: .mov 600kbps

2nd and 4th images show the next frame after the others, in which the distortion is more apparent. I don't know if this should be happening?

My settings, to my knowledge, were as follows:
Panavision preset (or was it vividrgb, looks like panny right?)
f1.8
1/48
24f
+6db
standard def


JS
Attached Thumbnails
Is this diffraction?-screenshot.jpg
John Stakes is offline   Reply With Quote
Old July 11th, 2009, 07:43 AM   #2
Major Player

Join Date: Oct 2004
Location: NYC
Posts: 260
no - diffraction is caused by small apertures. Using f1.8 you won't get diffraction but you may get a shallow DoF which can also lead to soft focus, particularly when subject is darker than bg
Doug Bennett is offline   Reply With Quote
Old July 11th, 2009, 12:34 PM   #3
Major Player

Join Date: Jan 2008
Location: Orlando, FL
Posts: 558
yeah there wasn't much light there, but I thought it would be enough for the gig. So is the problem here a soft focus? I didn't bother focusing manually because all the models were not walking to the same location on the stage, and AF has worked great in the past. Sometimes I did have to do a quick manual focus though because I know it's difficult for the AF to function in lower lighting conditions.
John Stakes is offline   Reply With Quote
Old July 12th, 2009, 02:17 AM   #4
Regular Crew

Join Date: Apr 2008
Location: Edinburgh UK
Posts: 94
was there a dirty sky light filter or something screwed on the end of the lens?

Ian
Festival Video and Audio Previews - Festival Previews Ltd
Ian Wright is offline   Reply With Quote
Old July 13th, 2009, 07:51 AM   #5
Major Player

Join Date: Oct 2004
Location: NYC
Posts: 260
shooting at f1.8 in auto focus with a moving subject in front of a bright background you are almost certainly going to have problems with soft focus.
Doug Bennett is offline   Reply With Quote
Old July 13th, 2009, 10:34 AM   #6
Major Player

Join Date: Jun 2006
Location: Boston, MA
Posts: 338
Also shooting at 24f in auto focus in any condition is not a good idea , adding the low lighting condition will make the auto focus a bigger problem.
Michael Ojjeh is offline   Reply
