What's going on here with quicktime 10 vs 7 and color? at DVinfo.net

Christopher Lovenguth · September 23rd, 2009, 04:19 PM

I just noticed that quicktime 10 is dramatically different in color and contrast over 7 of "raw" footage right out of 5D.

So what is going on here and which one is actually correct if either?

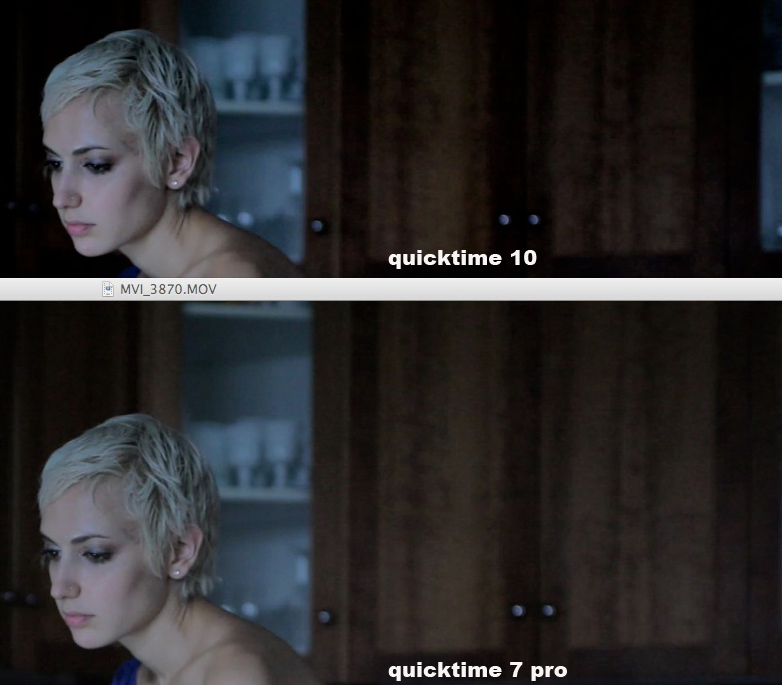

Please see screen shot attachment of two open windows of same footage at it's starting point.

Minh Khang · September 23rd, 2009, 08:55 PM

yup i noticed that too . All the clip shot from my Ex1 after render to Prores it look so Dark .
& All the clip export from final look more contrast & Darker than u see it in the Final cut Viewer .
that might be the Gamma from 1.8 to 2.2
Hope Apple will fix it soon .

Douglas Joseph · September 24th, 2009, 01:00 PM

I've also noticed the reds freaking bleed out everywhere. I wanna know what's the dilly with this. Get on it apple.

Jon Fairhurst · September 24th, 2009, 03:55 PM

Earlier versions of QT crushed the blacks of 5D2 files. Apple fixed that, but messed up the gamma. (It was too bright.) My gut feel is that the QT10 version is correct.

I was able to see the problem clearly in Vegas using the histogram tool. With QT7.6, you could see gaps and bumps on what should have been a smooth curve. The "look" is unimportant. The thing we want is to have all 256 levels from the camera to be unique. We can then grade in post with the best results possible.

I opened the attached JPEG, but couldn't see the histogram problems in either case. I believe that the scaling and JPEG encoding is smooshing the bits around.

Try saving a 1080p TIFF or other uncompressed format from your versions of QT. Look at the histograms with a good tool. (Photoshop's histogram might work, but it's really small.) To confirm things, you should see some inconsistencies with the QT7 photo. Once confirmed, see if the QT10 version is without gaps.

Matt Newcomb · September 24th, 2009, 04:51 PM

This looks like the gamma issue. It was supposed to be fix in the newest version of quick time, so I would go with what 10 looks like.

Paul Joy · October 8th, 2009, 09:35 AM

Did you install Snow Leopard?

Apple finally went to a standard gamma of 2.2 in OS10.6 after years of assuming mac users would be using a 1.8 gamma (the default up to 10.5).

FCP and quicktime used to apply a gamma change to video content to simulate what a PC / TV viewer would see, effectively darkening the footage. If like me you used a 2.2 gamma then FCP and Quicktime would still apply the darkening making the video look darker than it really is which was the cause of so many "why does my video look washed out after I export it" questions.

So with the latest FCP and Snow Leopard we're now seeing it as it should look, without any simulation. As far as I'm concerned it's great, they should have done it years ago.

I'm not sure this is the reason for your issue though, I'm just wondering if your running QT7 on Snow Leopard?

September 23rd, 2009, 04:19 PM	#1
Christopher Lovenguth Regular Crew Join Date: Mar 2009 Location: Brooklyn, NY Posts: 85	What's going on here with quicktime 10 vs 7 and color? I just noticed that quicktime 10 is dramatically different in color and contrast over 7 of "raw" footage right out of 5D. So what is going on here and which one is actually correct if either? Please see screen shot attachment of two open windows of same footage at it's starting point. Attached Thumbnails

September 24th, 2009, 01:00 PM	#3
Douglas Joseph Major Player Join Date: Oct 2005 Location: Zanesville OH Posts: 205	I've also noticed the reds freaking bleed out everywhere. I wanna know what's the dilly with this. Get on it apple. __________________ "Warriors... Come out to play..." www.importexporthd.com

September 24th, 2009, 03:55 PM	#4
Jon Fairhurst Inner Circle Join Date: May 2006 Location: Camas, WA, USA Posts: 5,513	Earlier versions of QT crushed the blacks of 5D2 files. Apple fixed that, but messed up the gamma. (It was too bright.) My gut feel is that the QT10 version is correct. I was able to see the problem clearly in Vegas using the histogram tool. With QT7.6, you could see gaps and bumps on what should have been a smooth curve. The "look" is unimportant. The thing we want is to have all 256 levels from the camera to be unique. We can then grade in post with the best results possible. I opened the attached JPEG, but couldn't see the histogram problems in either case. I believe that the scaling and JPEG encoding is smooshing the bits around. Try saving a 1080p TIFF or other uncompressed format from your versions of QT. Look at the histograms with a good tool. (Photoshop's histogram might work, but it's really small.) To confirm things, you should see some inconsistencies with the QT7 photo. Once confirmed, see if the QT10 version is without gaps. __________________ Jon Fairhurst

September 24th, 2009, 04:51 PM	#5
Matt Newcomb Major Player Join Date: Mar 2007 Location: Los Angeles, CA Posts: 212	This looks like the gamma issue. It was supposed to be fix in the newest version of quick time, so I would go with what 10 looks like. __________________ Talenos Productions at http://www.talenos.com

October 8th, 2009, 09:35 AM	#6
Paul Joy Major Player Join Date: Mar 2007 Location: Norfolk, UK Posts: 627	Did you install Snow Leopard? Apple finally went to a standard gamma of 2.2 in OS10.6 after years of assuming mac users would be using a 1.8 gamma (the default up to 10.5). FCP and quicktime used to apply a gamma change to video content to simulate what a PC / TV viewer would see, effectively darkening the footage. If like me you used a 2.2 gamma then FCP and Quicktime would still apply the darkening making the video look darker than it really is which was the cause of so many "why does my video look washed out after I export it" questions. So with the latest FCP and Snow Leopard we're now seeing it as it should look, without any simulation. As far as I'm concerned it's great, they should have done it years ago. I'm not sure this is the reason for your issue though, I'm just wondering if your running QT7 on Snow Leopard? __________________ Blog: www.pauljoy.com Company: www.videotrader.co.uk

September 23rd, 2009, 08:55 PM	#2
Minh Khang New Boot Join Date: Aug 2006 Location: california Posts: 19	yup i noticed that too . All the clip shot from my Ex1 after render to Prores it look so Dark . & All the clip export from final look more contrast & Darker than u see it in the Final cut Viewer . that might be the Gamma from 1.8 to 2.2 Hope Apple will fix it soon .
