FD to EF mount adapter

Dan Burnap · July 30th, 2011, 04:56 AM

There are some very cheap FD mount lenses on Ebay. Is it just a case of buying a cheapie FD to EF mount to attach one of these, let's say a 50mm 1.4 prime, onto my 60D? I know that focus and aperture will all be done manually by the lens rings but it is that it?, nothing else to be aware of? It just sounds too easy and too cheap..!

Nigel Barker · July 30th, 2011, 06:36 AM

Sadly no. The distance from the back of the lens to the sensor is wrong so an adaptor needs to have a lens in it to focus on the sensor correctly. The problem is that with the cheap $30 FD to EOS adaptors usually available that the lens in them is pretty poor quality. When Canon introduced the EOS mount & killed FD they produced a high quality FD to EOS adaptor but that only works with the top of the line expensive FD mount telephoto lenses (I think that 200mm was the minimum). It is also possible to buy a glassless adaptor that does allow focus to infinity but only for the extreme telephoto 600mm & 800mm FD lenses

http://cgi.ebay.ca/ws/eBayISAPI.dll?...#ht_611wt_1141
The sort of lens that you get in a $30 adaptor isn't going to give a very good image.

However I have recently heard of a new higher quality adaptor available at around $100 & have just ordered one myself as I have a nice collection of FD 'L' lenses.

CANON FD - EF EOS ADAPTER AF CONFIRM UK DESIGN | eBay

The final option is that it is possible to get FD lenses converted to EF mount but this does require machining by a skilled craftsman & consequently is not cheap.

Dan Burnap · July 30th, 2011, 07:32 AM

thanks Nigel, i knew it wouldnt be simple!

Phil Murray · July 30th, 2011, 09:36 AM

Nigel,

Once you receive the adapter, please let us know how it performed. I also have quite a few FD lenses that I'd like to use, but haven't found a decent adapter.

Thank you,

Phil

Galen Rath · July 30th, 2011, 04:39 PM

I'm also looking for a Canon FD converter that doesn't make things look like there's a heavy fog.

John Wiley · July 30th, 2011, 05:18 PM

With the glass adaptors you also get a further 1.3x crop factor with all your lenses - and thats on top of the 1.6x crop of the aps-c sensor. So your 50mm lens becomes a 65mm lens with a FOV equivelant to a 104mm lens when used on the 550D.

Buba Kastorski · August 2nd, 2011, 12:57 PM

Quote:

Originally Posted by Nigel Barker

However I have recently heard of a new higher quality adaptor available at around $100

I am afraid as long as adapter uses cheap glass it'll be the same poor quality adapter with different name, I tried a few of them, they all make FD lenses soft

Phil Murray · August 2nd, 2011, 07:10 PM

I agree, Buba. I'm curious, though, to see how Nigels' new adapter works. Guess I'm being too hopeful Seems like SOMETHING has to work eventually...

Nigel Barker · August 3rd, 2011, 02:38 AM

Quote:

Originally Posted by Buba Kastorski

I am afraid as long as adapter uses cheap glass it'll be the same poor quality adapter with different name, I tried a few of them, they all make FD lenses soft

I'll let you know when I receive my adaptor but I am optimistic as the adaptor is not a cheap Chinese plastic one but made by a proper craftsman here in the UK who repairs & services lenses. FD to EF Adapters

Buba Kastorski · August 3rd, 2011, 06:30 AM

Quote:

Originally Posted by Nigel Barker

I'll let you know when I receive my adaptor

please do, I really hope you're right about that one

Nick Gordon · August 8th, 2011, 04:45 AM

I have one of these adapters, and I'm very pleased with it; the guy who makes them is very responsive to queries too.

Nigel Barker · August 8th, 2011, 07:21 AM

Quote:

Originally Posted by Nick Gordon

I have one of these adapters, and I'm very pleased with it; the guy who makes them is very responsive to queries too.

That's good to hear. I may ask him about getting my FD lenses de-clicked & permanently converted to EF mount as it seems unlikely that I shall ever use them on a camera that they were designed for. I am in France ATM but will be back in the UK in a couple of days so hopefully my adaptor will be waiting for me.

Buba Kastorski · August 10th, 2011, 07:31 AM

yesterday i tried 135mm f:2 with another FD to EF adpter, without glass , razor sharp image where you able to focus, but it's a very limited focal length range where you can get a focus

Joel Peregrine · August 26th, 2011, 09:29 PM

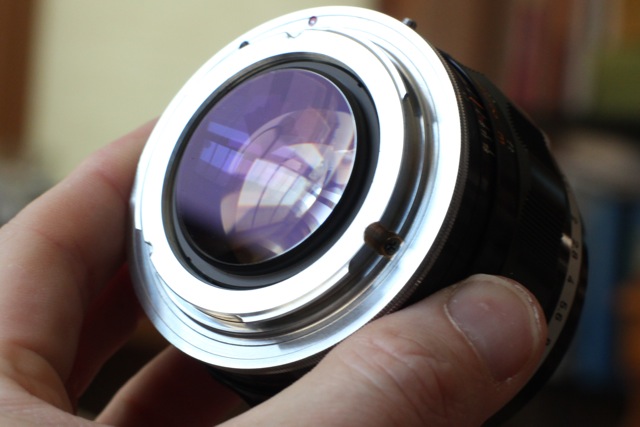

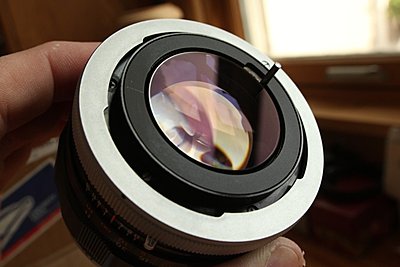

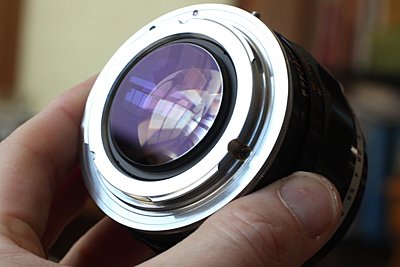

Just a note - Canon FL lenses are apparently easier to convert. I sent a 55mm f1.2 for conversion to Jim Buchanan. Came back looking beautiful. This lens much less expensive than the FD version and is phenomenally sharp at 2.0. It has a click at 1.4 that is useful and 1.2 is there when you need it. The conversion was $125. Before and after conversion pix attached.

Nigel Barker · August 27th, 2011, 03:00 AM

Sad to report but the FD to EOS adaptor is OK but not great. It is much better than the cheap versions but comparing between FD lens plus adaptor versus a native EF lens the sharpness is way down. It may be that the old FD (50mm F/1.2L, 24mm F/1.4L etc) lenses that I have are not great examples or that the modern EF 'L' lenses I have (70-200mm F/2.8 etc) are so much better in comparison. The adaptor i usable but no substitute for a native lens.
