Experiences with Ninja and 5d mkII at DVinfo.net

John Harvey · March 25th, 2012, 06:23 PM

Been working with my 5d running AJ 5.9 for a clean hdmi out. Then into the Ninja. I'm finding I'm getting black bands and various cropping issues. Is this common?

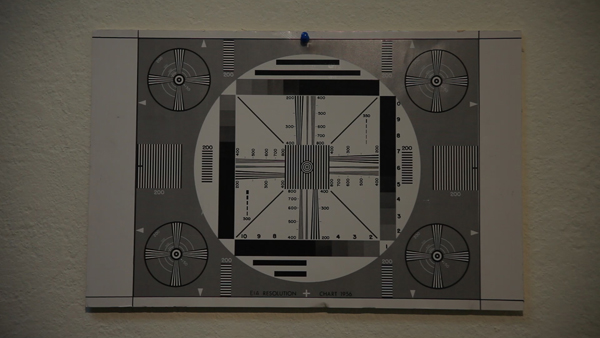

Top left is the native Canon recording to the CF

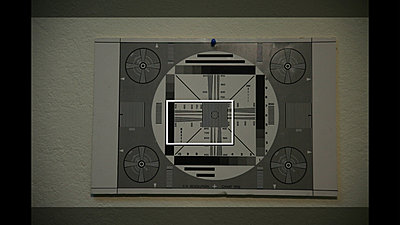

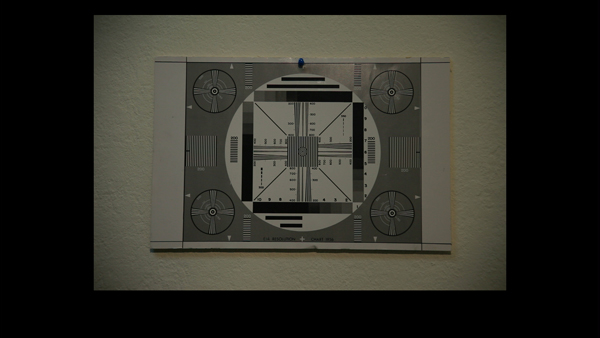

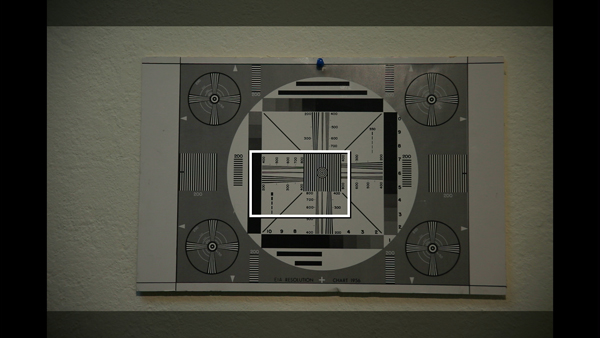

Top right is the native canon HDMI out to the Ninja. black bands on the left, canons crop overlay on the top and bottom.

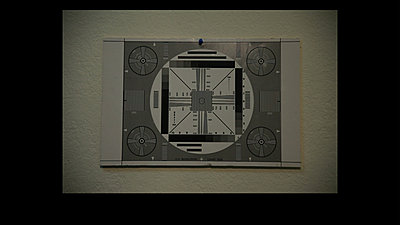

The bottom left pic? AJ and Canon and ninja seamed to have gotten confused. Shut down reboot seamed to get it back to normal size

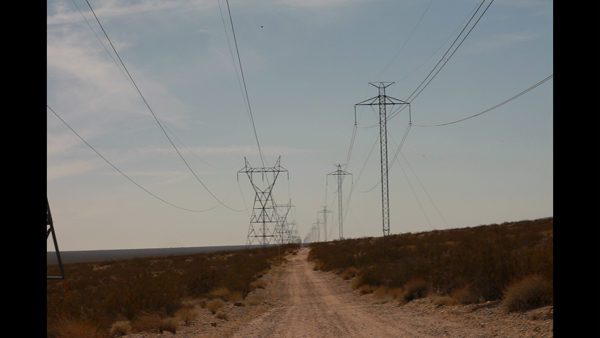

Bottom right pic, test footage shot, big crop bands on left and right.

If anyone has had success with the 5D / Ninja combination I'd like to hear about it. I was hoping to use the full frame and not have to crop down of zoom in.

jh

Simon Wood · March 26th, 2012, 01:06 AM

I was under the impression that all DSLRs up to now had HDMI out that was in one way or another purposely compromised (so as not to infringe on higher priced video camera markets).

I tried getting a clean signal out of a couple of Canon DSLRs with a Nanoflash some time back and gave up on it. At the time I had done a lot of internet searches on the topic and they all had similar results to what you are getting. Blowing up the cropped image produced results that were of lesser quality to the onboard codec I believe.

The new Nikon D800 is meant to be the first DSLR with a workable HDMI out (Nikon being in the unique position that it does not have a video camera division to protect).

John Harvey · March 26th, 2012, 03:07 PM

I have not hooked up an HDMI monitor yet, but I would expect a 1080 monitors frame to be filled without black bands? I'm going to bring the 5d home tonight and hook it up to my TV to see what it looks like.

March 25th, 2012, 06:23 PM	#1
John Harvey Regular Crew Join Date: Feb 2005 Location: los angeles, ca Posts: 76	Experiences with Ninja and 5d mkII Been working with my 5d running AJ 5.9 for a clean hdmi out. Then into the Ninja. I'm finding I'm getting black bands and various cropping issues. Is this common? Top left is the native Canon recording to the CF Top right is the native canon HDMI out to the Ninja. black bands on the left, canons crop overlay on the top and bottom. The bottom left pic? AJ and Canon and ninja seamed to have gotten confused. Shut down reboot seamed to get it back to normal size Bottom right pic, test footage shot, big crop bands on left and right. If anyone has had success with the 5D / Ninja combination I'd like to hear about it. I was hoping to use the full frame and not have to crop down of zoom in. jh Attached Thumbnails

March 26th, 2012, 01:06 AM	#2
Simon Wood Major Player Join Date: Nov 2010 Location: Entebbe Uganda Posts: 768	re: Experiences with Ninja and 5d mkII I was under the impression that all DSLRs up to now had HDMI out that was in one way or another purposely compromised (so as not to infringe on higher priced video camera markets). I tried getting a clean signal out of a couple of Canon DSLRs with a Nanoflash some time back and gave up on it. At the time I had done a lot of internet searches on the topic and they all had similar results to what you are getting. Blowing up the cropped image produced results that were of lesser quality to the onboard codec I believe. The new Nikon D800 is meant to be the first DSLR with a workable HDMI out (Nikon being in the unique position that it does not have a video camera division to protect). __________________ http://vimeo.com/channels/guerrillafilms

March 26th, 2012, 03:07 PM	#3
John Harvey Regular Crew Join Date: Feb 2005 Location: los angeles, ca Posts: 76	Re: Experiences with Ninja and 5d mkII I have not hooked up an HDMI monitor yet, but I would expect a 1080 monitors frame to be filled without black bands? I'm going to bring the 5d home tonight and hook it up to my TV to see what it looks like.
