some footage from homemade adapter for A1 at DVinfo.net

Luis Bustamante · August 10th, 2006, 06:34 AM

http://homepage.mac.com/luisbustamante/palaweb.mov

Very early prototype, I just want to get some feedback on the footage, talking of which, it's h264 with FCP's 3 way color correction.

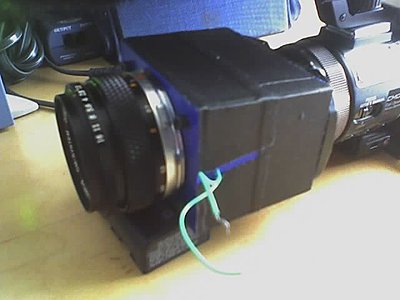

it's a vibrating gg situated 35mm in front of the camera lens. The gg is a condenser/focusing screen combo from an old canon reflex (currently it has the micro prism so there's a circle in the middle, but that'll be solved with a nikon d red dot screen that's on it's way to me).

No image flip.

Vibration done by 2 cellphone vibs fed on 2 AA batteries. Spring mounted. Foam used to avoid z axis mov.

Total Length from lens mount to lens mount 75mm aprx.

Right now it has a cheap olympus 50/1.8f lens, but i intend to outfit it with the leica M noctilux and more of the line.

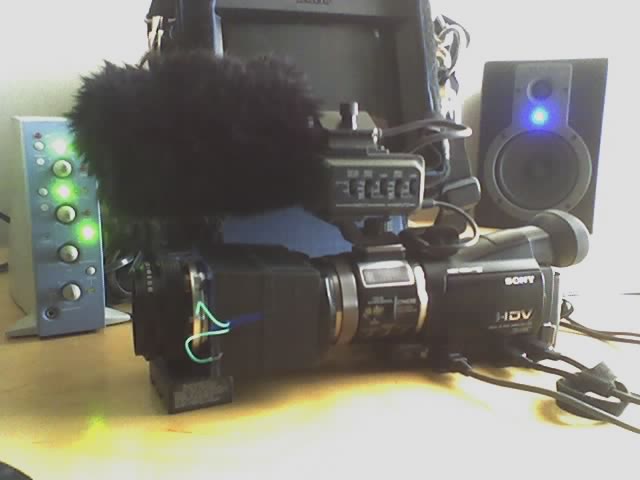

It's a small, simple and portable design. I used the lens shade/cap of the cam for this prototype's mount to the camera (but I'll make a stronger one for the final version), all other piedes cut out of a PVC sheet. I hope to get some custom black ABS injection molded parts for it to match the Sony look. I'll post better pictures and more adequate footage when I get the nikon screen.

thanks!

Note: The vibrator is initially off and turned on by the first third of the video

Sam Jankis · August 11th, 2006, 01:42 AM

Your link isn't working.

Luis Bustamante · August 11th, 2006, 10:22 AM

Quote:

Originally Posted by Sam Jankis

Your link isn't working.

yeah, sorry about that, I had to take it down because the file was too big, I'll recompress it and post back.

Thanks for your interest
