I7 CPU using PPro CS4. Why so slow?

[Steve Nelson]

That could very well be Rob. Do you by chance have something that isn't AVCHD to work with to test that theory? I have an EX-1 so I don't routinely work with that format. By chance do you know how to run Performance Monitor and catch a screen cap of that for us?

Specifically, set up counters to capture % Processor Time, Processor Queue Length, Current Disk Queue Length & % Disk Time(for each physical drive) and Memory Pages/sec.


This will give us any idea on what your system looks like while rendering. Want we want to look for is tasks waiting to be executed or queuing up somewhere. If the disk counters are low then you're theory will be proven correct and it will be a matter of digging into individual processes to see how they're performing. What you want to do is show how hard the hardware is working and if it isn't then you can bet that it's an application problem.

[Graham Hickling]

I have an I7 920 with non-RAID 7200rpm disks. It's about average for an I7-920 on the Premiere Perfomance benchmark scoresheet.

When I encode AVCHD clips to 1080i H264 using CS4 AME I get all cores active with CPU utilization fluctuating between 74 and 81%.

You mentioned your problem is with "edited" AVCHD - do you have color correction or whatever applied? Some filters may not be multicore aware ... might explain why Avisynth works OK and (your) AME doesn't seem to.

[Rob Johnson]

Steve, I'll get on it. Please give me a list of the most relevant counters to set up in PM and I'll grab a screen shot. I'll also try encoding to/from some other formats, perhaps ruling out the AVCHD and/or QT codecs playing badly with AME and I7.

[Rob Johnson]

Graham, hmmm, now that IS interesting. I've encoded AVCHD both straight and using a few simple filters, such as a HSL or levels adjust. Same rendering problem on both accounts.

Only difference I can see is you're encoding to H.264 1080i whereas I'm encoding to MPEG4 (Part 2) 1080p. As I said to Steve above, it will be worth a shot to try encoding to these different formats. Based on what you've just said I'll start with that.

[Rob Johnson]

Originally Posted by Harm Millaard

This is my setup and my workflow is usually XDCAM/HDV/DV with 5.1 sound exported with AME to H.264-BR/MPEG2-BR/MPEG2-DVD/MPEG2 I-frame 1920x1080 for further encoding with HC.

I suggest you try the PPBM4 home page benchmark and mail the results to Bill to see where your system performance is in relation to others. Maybe that will give an inkling of what is going on.

Harm, Thank you for sharing your information and posting the link to PPBM4. I just downloaded it and I'm sure it will prove to be helpful.

[Rob Johnson]

Originally Posted by Graham Hickling

I have an I7 920 with non-RAID 7200rpm disks. It's about average for an I7-920 on the Premiere Perfomance benchmark scoresheet.

When I encode AVCHD clips to 1080i H264 using CS4 AME I get all cores active with CPU utilization fluctuating between 74 and 81%.

You mentioned your problem is with "edited" AVCHD - do you have color correction or whatever applied? Some filters may not be multicore aware ... might explain why Avisynth works OK and (your) AME doesn't seem to.

Graham, yesterday I did an encode to H.264 1080i and had a processor utilization of 50-60%. I dropped an AVCHD clip in the timeline, no filters no edits, and did the render.

Regarding the AME video export tab, from top to bottom, would you be so good as tell me exactly what your export setting are? I feel I'm making progress and would like to take this further.

[Harm Millaard]

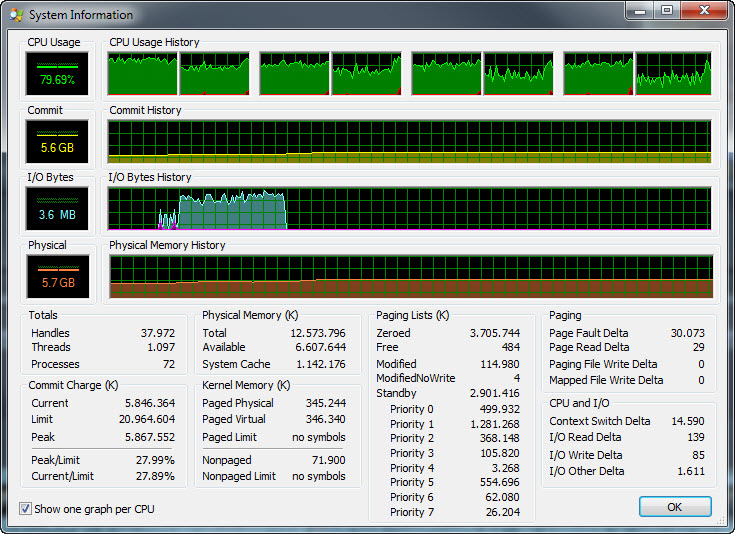

Although directed at Graham, allow me to give you my results, exporting to H.264-BR VBR-1 pass, target 25 and max 30, 1920 x 1080 25i with AC3 5.1 448 Kb sound, results in these rates:

[Graham Hickling]

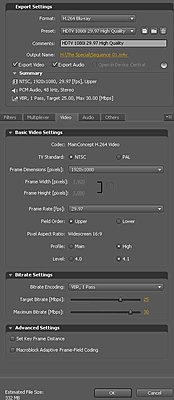

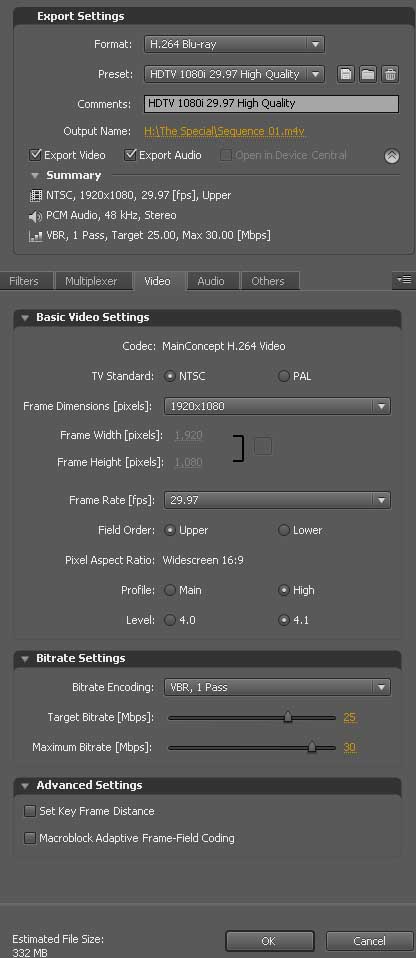

Rob - these are the export settings for the encoding I mentioned earlier. The original clip was 1080i AVCHD from a Canon HF10.

[Rob Johnson]

Graham and Harm, thanks much for sharing your settings. Graham, I'll try yours tomorrow (Harm is using XDCAM/HDV/DV) ... see what's what with CPU usage and post the findings. If I get similar utilization as you then at least I know it's the encoding codec and not AME.

By the way, Harm. Here are some of the results of your benchmark on my current configuration. What's the verdict?

77.7, secs Total Benchmark Time
10.6, secs AVI Encoding Time
35.1, secs MPEG Elapsed Time
32, secs Rendering Time

[Harm Millaard]

The 10.6 AVI result is pretty disappointing. Compare it to Jim Simons results, he is in the same league and like his system, that score is in the D1 range, belonging to the lowest 25% of all scores. This means that either your disk setup can be improved or you have too many disk related background processes running, like indexing, compression or disk optimizers.

Your MPEG encoding is quite average for the i7. Nothing wrong with that result. It shows that you have a good CPU and in comparison to others you are in the top 25-50% on this test. However, due to your disk intensive results, your rendering test is only mediocre.

Your system can be optimized to give better results. Bill will include your data shortly and he probably will give you similar feedback. On Total time your results are MED, but in RPI only Q1. What that means can be found in the legends on the results page or in the methodology on the conclusions page.

[Lars Siden]

I rendered alot of material yesterday(SD material, 720x576) - I render from a striped HDD array to a single SDD disk. I have a Quad 9450 @ 3.2ghz with 8gb mem and Win 7 x64.

I noticed that renders where I only had cuts(no color processing or so) - AME used about 25-30% cpu - disk usage was about 200mb/sec(resource monitor). When AME rendered projects where I used blur/color processing/etc the cpu was rock solid at 100% - disk down to about 25mb/sec.

My conclusion:

When "joining" files(ie cuts) - only one thread is running

When processing media, all available cores are used.

For me, the latest version of AME works very well(compared to a year ago)

// Lazze

[Rob Johnson]

Originally Posted by Graham Hickling

Rob - these are the export settings for the encoding I mentioned earlier. The original clip was 1080i AVCHD from a Canon HF10.

Using a single AVCHD file in the timeline (no cuts no filters) and using the same export settings, I had a CPU utilization that fluctuated between 67 and 86%. So an average utilization of about 77%.

Originally Posted by Harm Millaard

The 10.6 AVI result is pretty disappointing. Compare it to Jim Simons results, he is in the same league and like his system, that score is in the D1 range, belonging to the lowest 25% of all scores. This means that either your disk setup can be improved or you have too many disk related background processes running, like indexing, compression or disk optimizers.

Your MPEG encoding is quite average for the i7. Nothing wrong with that result. It shows that you have a good CPU and in comparison to others you are in the top 25-50% on this test. However, due to your disk intensive results, your rendering test is only mediocre.

Your system can be optimized to give better results. Bill will include your data shortly and he probably will give you similar feedback. On Total time your results are MED, but in RPI only Q1. What that means can be found in the legends on the results page or in the methodology on the conclusions page.

I added a 3rd external (source) HDD (USB 2.0). Shut down some more processes and programs that booted on startup. Disabled indexing on all drives. I ran the test again two different times. First from the external drive to the destination drive. And then from the OS drive to the destination drive.

First result set:
435MT, Computer Model
93.1, secs Total Benchmark Time
10, secs AVI Encoding Time
37.1, secs MPEG Elapsed Time
46, secs Rendering Time
Intel, CPU Manufacturer
I7-920, CPU Model
2.66, GHz CPU speed

Total render queue time was 9:02

Second:
435MT, Computer Model
80.5, secs Total Benchmark Time
10.5, secs AVI Encoding Time
37, secs MPEG Elapsed Time
33, secs Rendering Time
INTEL, CPU Manufacturer
I7-920, CPU Model
2.66, GHz CPU speed

Total render queue time was 8:42

With some minor exceptions, it looks like everything is relatively the same.

Originally Posted by Lars Siden

I rendered alot of material yesterday(SD material, 720x576) - I render from a striped HDD array to a single SDD disk. I have a Quad 9450 @ 3.2ghz with 8gb mem and Win 7 x64.

I noticed that renders where I only had cuts(no color processing or so) - AME used about 25-30% cpu - disk usage was about 200mb/sec(resource monitor). When AME rendered projects where I used blur/color processing/etc the cpu was rock solid at 100% - disk down to about 25mb/sec.

My conclusion:

When "joining" files(ie cuts) - only one thread is running

When processing media, all available cores are used.

For me, the latest version of AME works very well(compared to a year ago)

// Lazze

This seems to be a weird area. Sometimes I get faster render times by having no cuts and using no filters. Other times it's faster by adding filters. It seems to depend on which ones are added.

As far as some 3rd party filters, Magic Bullet Looks, for instance, seems to slow down CPU utilization to about 25% no matter what. I haven't used it in a few months since a few upgrades but assume it might be the same.

These days I edit AVCHD almost exclusively. So far I've found the biggest determiner of CPU utilization and render time to be the codec/format I'm exporting to. For example, exporting to QT MPEG4 gives me only 25%. Yet exporting to QT H.264 gives me 75% (all 1920x1080p). I've tried a number of other export formats per this thread. I've had around 75% with most.

The only time I've seen 100% is during Harm's benchmark test. When rendering out the AVI file, (there are 10 in the test), during about the last 1/5th of the render, all 4 cores will peg to 100%. Looking at the timeline, it is during the multiple color-bar portion of the test.
