David A. Smith · January 27th, 2015, 03:06 PM

We're attempting to repurpose an Ultrastudio 3D unit to play two 1080i Prores clips in sync into two separate monitors using the A and B SDI outputs.

Can we use 3D Toolbox LE to assign left eye and right eye designations to accomplish this?

To be clear, we are using a 2D workflow and want to watch two different full res. clips playing back in sync on two different monitors.

Thanks!
David

Tim Dashwood · January 28th, 2015, 12:28 AM

I haven't had a chance to try this lately so it may or may not work.

I would suggest using Blackmagic's Media Express app (should already be in your Applications folder) and rename your two ProRes files so that the left file just has a normal name and the right file has the EXACT same name with "_right.mov" at the end.

So:
filename.mov
filename_right.mov

If the two files are exactly the same length in frames, Media Express preferences are setup as HD 1080i59.94 3D and ProRes then Media Express should be able to import the two quicktimes and playback in perfect sync.

I remember this being tricky though.

Please let me know how it works out.

Tim Dashwood · January 28th, 2015, 01:17 AM

OK I figured this out.

It is actually easier than I described above.

1. Launch Blackmagic-Design Media Express after turning on Ultrastudio 3D

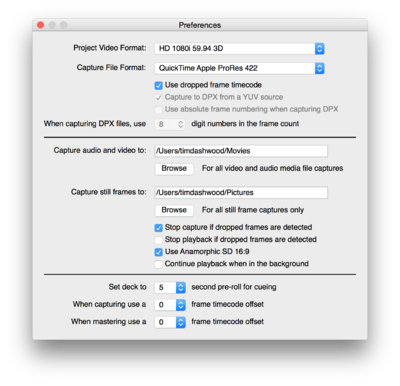

2. Set the preferences to HD 1080i59.94 3D (or whatever format your quicktime are in)
3. Drag or import the Left quicktime file into Media Express.
4. Double Click it so that it is loaded in the playback window.

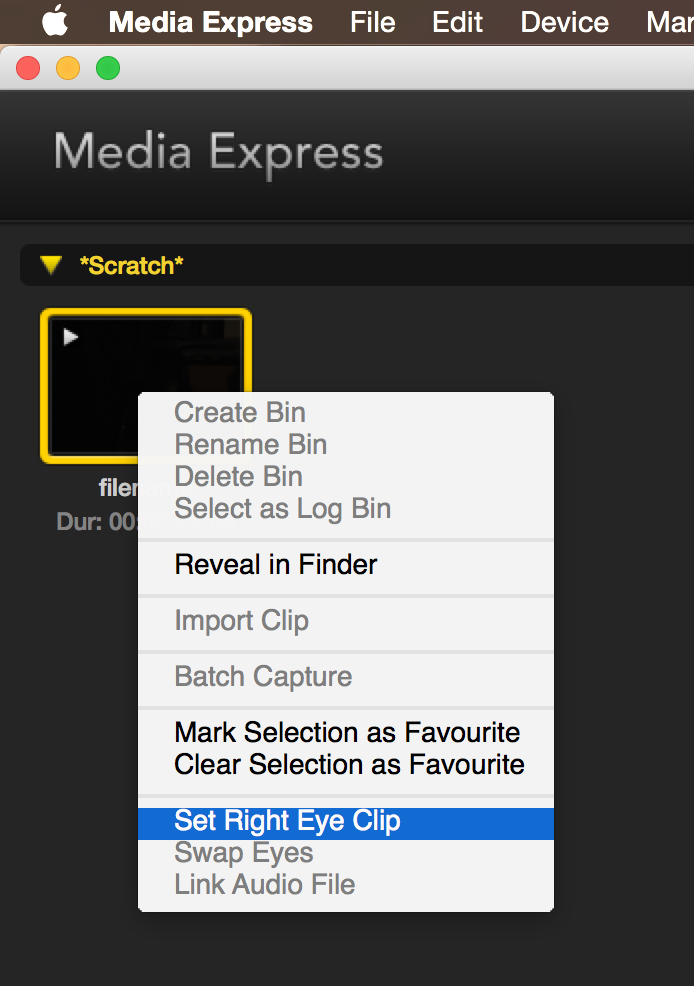

5. Right-click or CTRL-click the clip to reveal the contextual menu.
6. Select "Set Right Eye Clips" and then navigate to and choose the right eye clip.

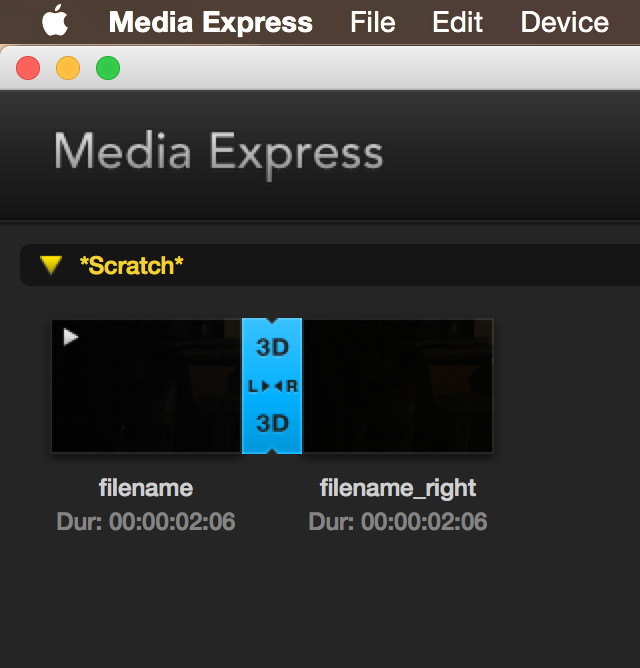

7. You will now have a paired clip that you can play. Save the project for later so you don't have to go through this process each time.

David A. Smith · January 29th, 2015, 10:31 AM

Thank you very much! I will try this out and let you know what happens.

Best,
David

David A. Smith · February 6th, 2015, 12:29 PM

Thank you Tim,

The method you pointed out worked perfectly and Media Express played the two files out in sync and with no dropped frames. Looks great! Two 1080i Prores proxy files playing off of one SSD via USB 3.

Media Express doesn't seem to have the playback and navigation control we're looking for, which was why I was interested in working in Final Cut Pro. Play and pause are about all the control Media Express seems to provide. We're used to being able to jump to specific spots using timecode and being able to navigate around the timeline by specific amounts, play in 2x speed, play backwards, etc.

I tried the trial version of 3D Toolbox LE in Final Cut 7 and 10.1, and I can get side by side images on both monitors, but can't find an output setting that gives me the discreet eyes on the two SDI outputs of the Ultrastudio 3D.

Is that the nature of the beast, or can you suggest some method or settings that I'm not doing correctly?

I would try DaVinci Resolve but the lite version specifies that it isn't 3D capable and the $1k price tag for the full version is too steep for this experiment.

Thanks so much for your assistance!
Regards,
David
